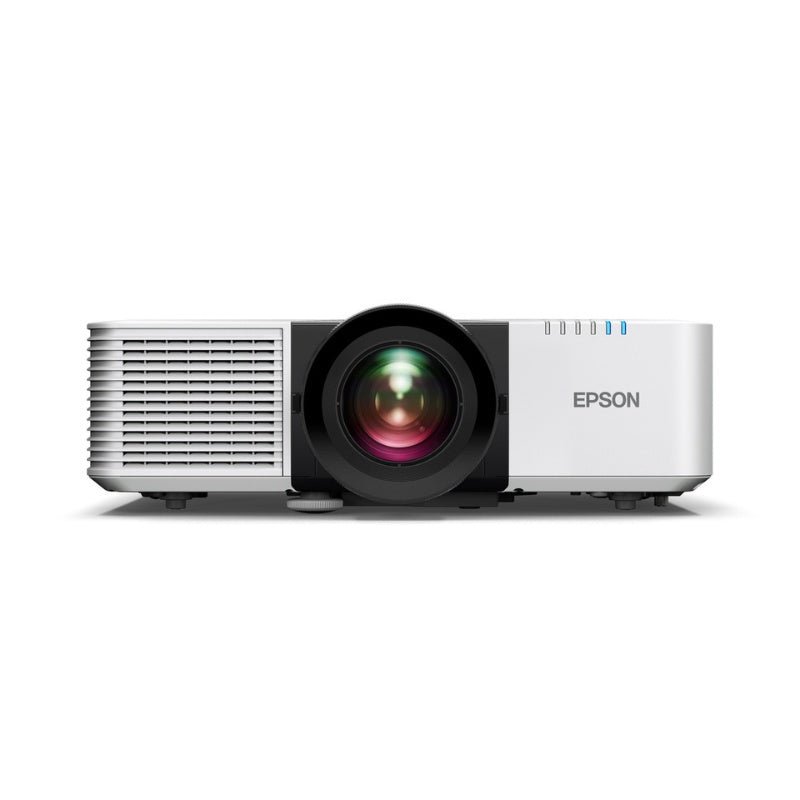

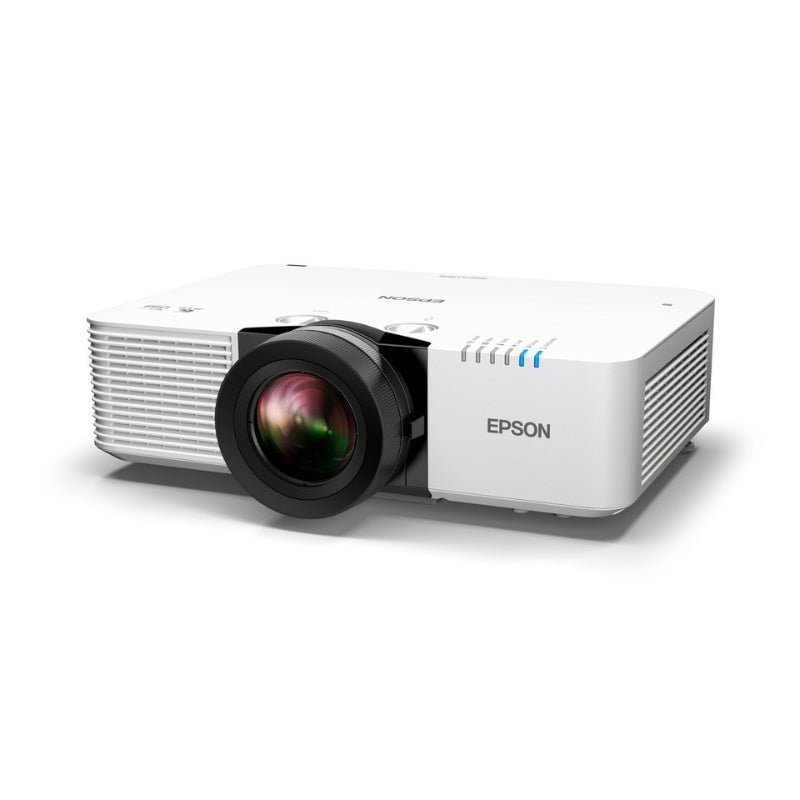

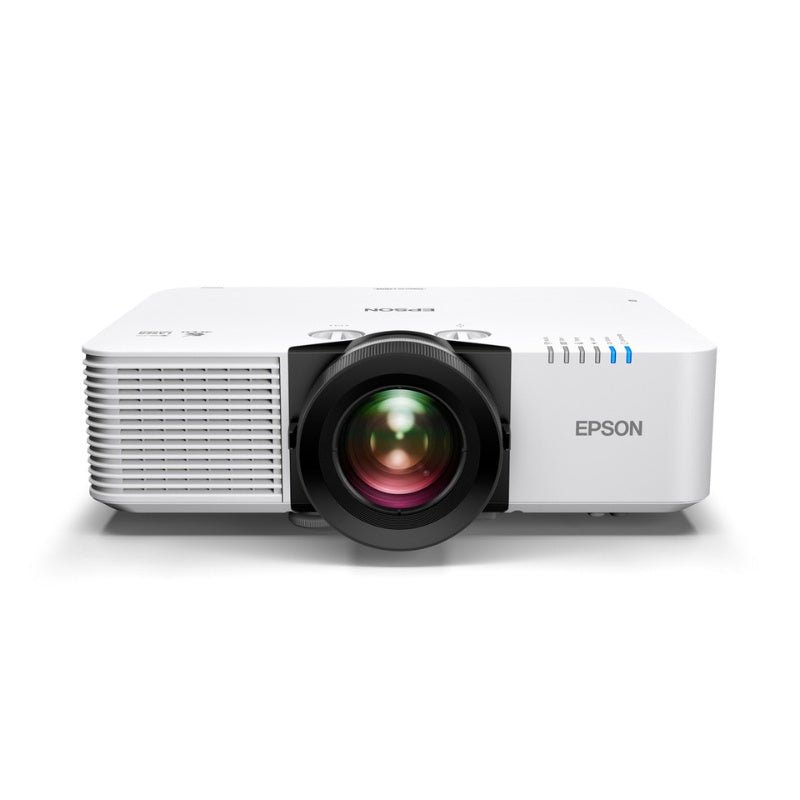

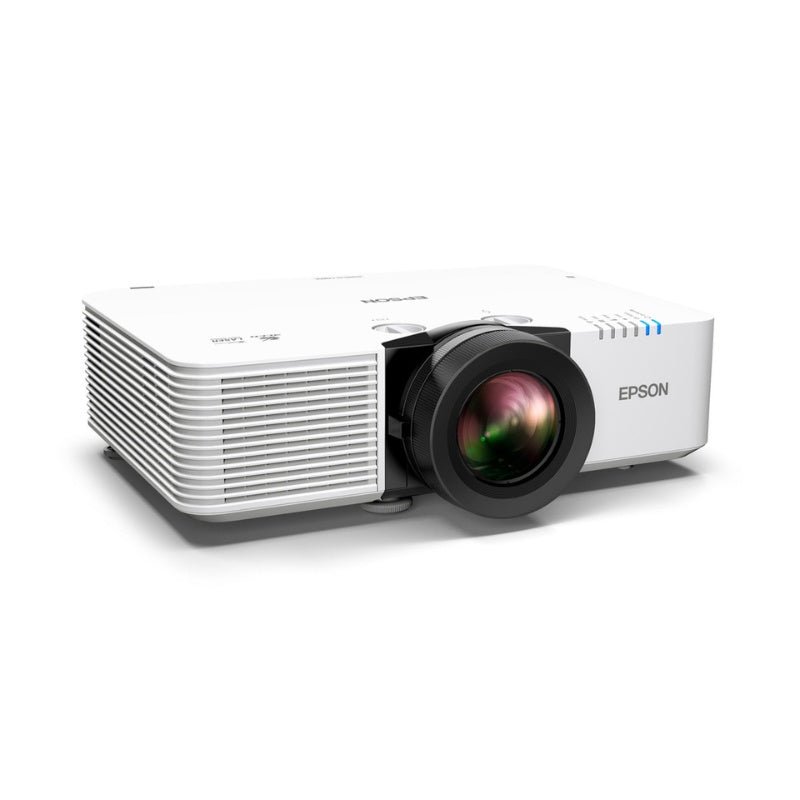

Epson L790SE PowerLite 7000-Lumen WUXGA Short Throw 3LCD Laser Projector with 4K Enhancement

Ultra Bright, True-To-Life Images
Delivers 7,000 lumens of equal color and white brightness using advanced 3-chip 3LCD technology for vibrant, detailed displays—even in high-ambient light.

WUXGA With 4K Enhancement Technology
Accepts 4K content and displays double HD video resolution for razor-sharp clarity, even up close.

Large Displays From Short Distances
With a 0.79 – 1.36 throw ratio and 1.7x optical zoom, achieve large, shadow-free images up to 400" diagonal in standard 16:10 or ultra-wide 16:6 and 21:9 formats.

Simplified Installation

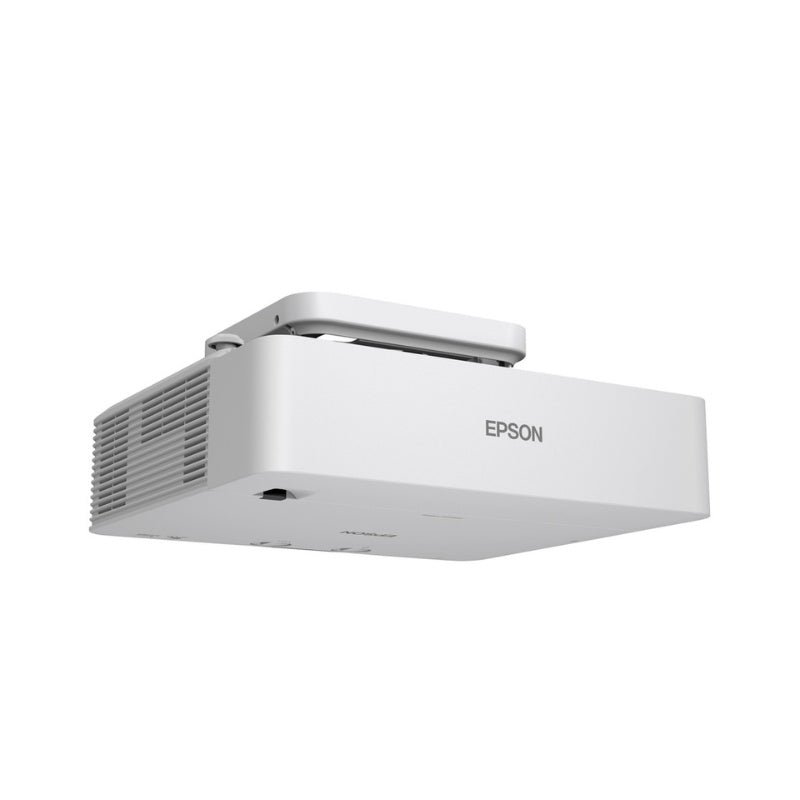

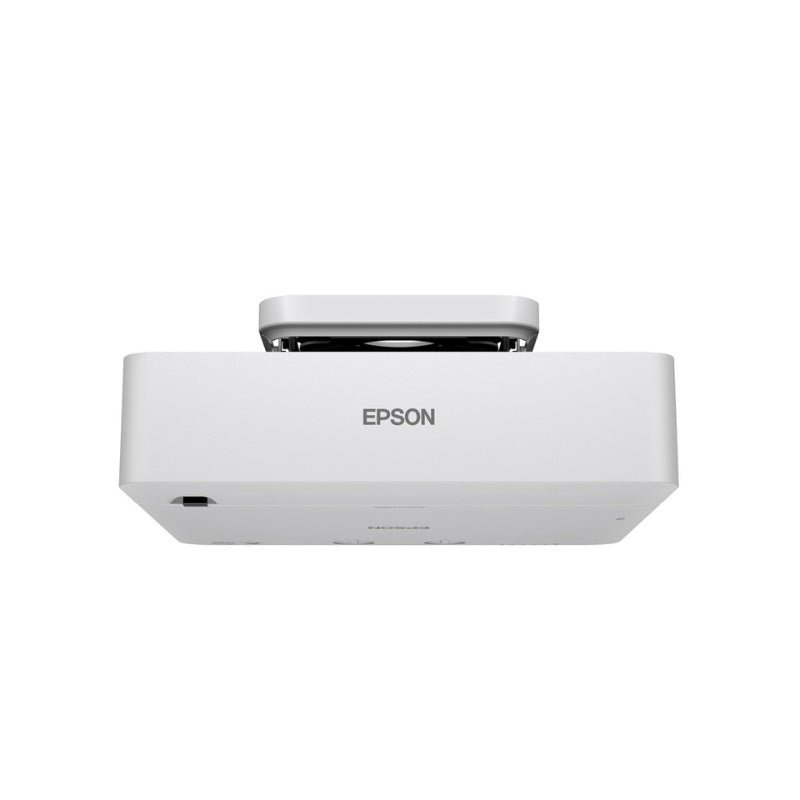

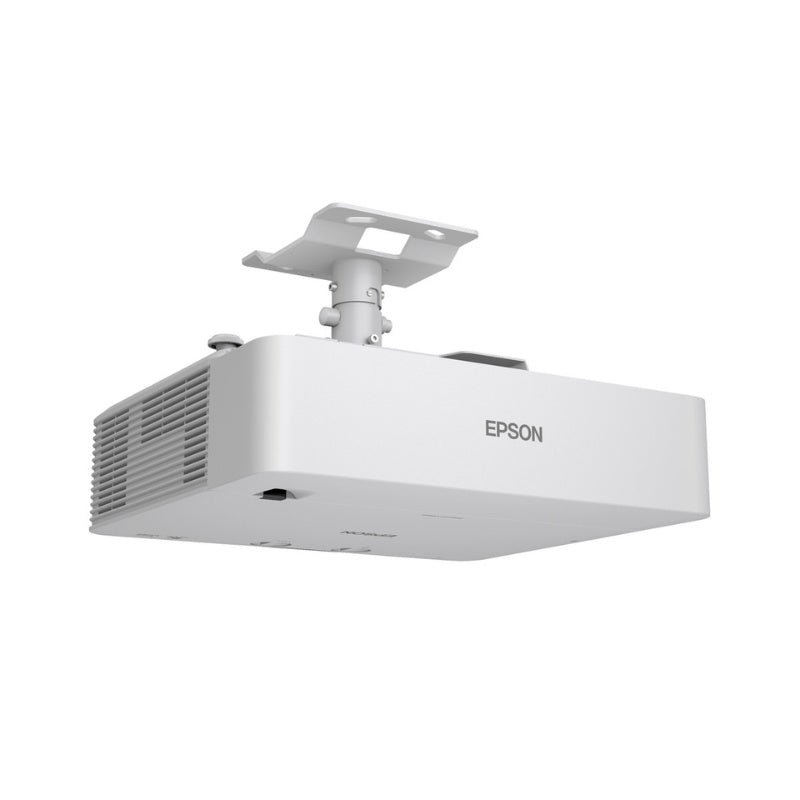

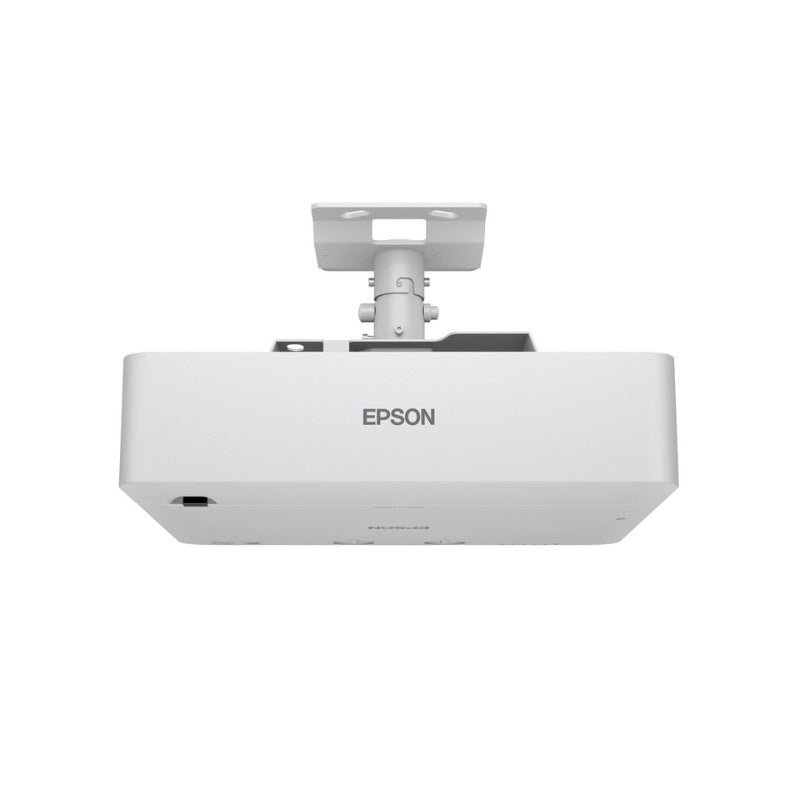

Wide lens shift, 360-degree mounting, compact form factor, geometric correction, and NFC functionality streamline setup and integration.

Low Maintenance Laser Engine
Virtually maintenance-free laser light source and air filter last up to 30,000 hours in Extended Mode.

Advanced Wireless Networking And Content Sharing
Wi-Fi 6/6E with enterprise security for fast, reliable wireless casting; compatible with Epson iProjection, Apple AirPlay 2, and Miracast.

Easy Setup With NFC
Use the Epson Projector Config Tool app and built-in NFC to copy settings and configure multiple units quickly.

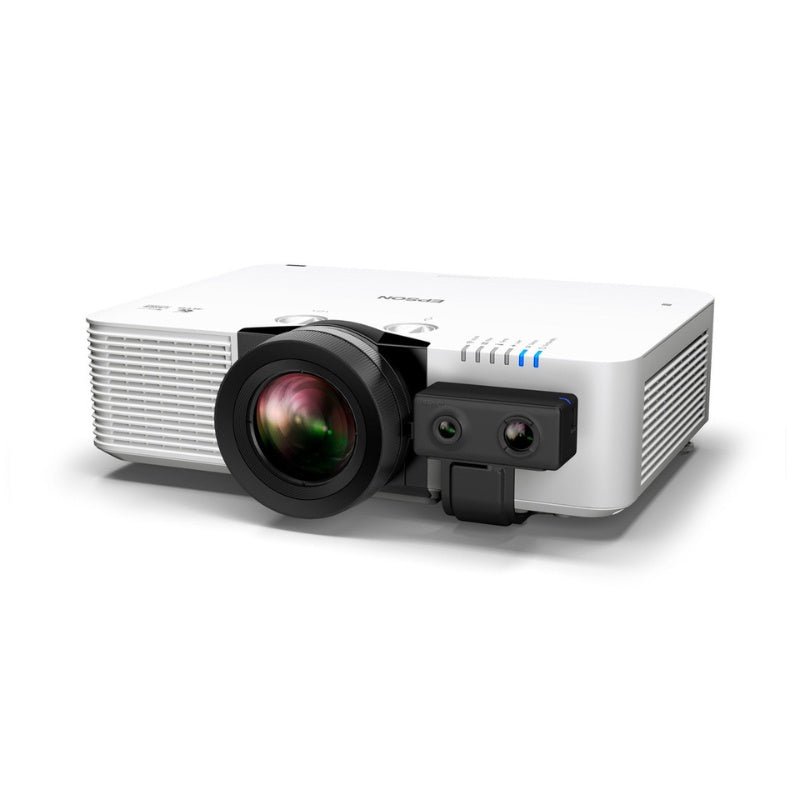

Multi-Projector Tools With PixAlign Camera
Optional PixAlign camera adds tools for screen matching, auto color calibration, blending assist, and stacking—no PC required.

Comprehensive Connectivity
Dual HDMI in, HDMI out, and HDBaseT provide daisy-chaining, signal monitoring, and easy AV integration.

Eco-Conscious Design
RoHS compliant, energy-saving ECO mode, end-of-life options, and manufacturing powered by 100% renewable electricity.

Included with Your Purchase:

• Epson L790SE PowerLite 7000-Lumen WUXGA Short Throw 3LCD Laser Projector with 4K Enhancement
• Power Cable
• Projector Remote Control With Batteries
• Quick Setup Sheet
• Cable Cover
• Quick Setup Poster

General Specifications:

• Projection System: RGB liquid crystal shutter projection system
• Projection Method: Front/rear/ceiling mount
• LCD Size: 0.67" (C2 Fine)
• Driving Method: Poly-Silicon TFT Active Matrix
• Pixel Number: 2,304,000 Dots (1920 x 1200) x 3
• Native Resolution: WUXGA with 4K Enhancement (1920 x 1200 x 2)
• Resolution On-Screen: WUXGA with 4K Enhancement / 4.6 million pixels
• Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050
• Aspect Ratio: Supports 4:3, 16:10, 16:9*, 16:6*, 21:9*
  * With vertical image shift control within letterbox area
• Pixel Arrangement: Cross stripe
• Color Brightness: Color Light Output: 7,000 lumens
• White Brightness: White Light Output: 7,000 lumens
• Contrast Ratio: Up to 5,000,000:1
• Brightness Uniformity (Typical): 88%
• Color Reproduction: Up to 1.07 billion colors
• Size (Projected Distance): 60" – 400"
• Projected Distance: 80" Screen 1.38 m

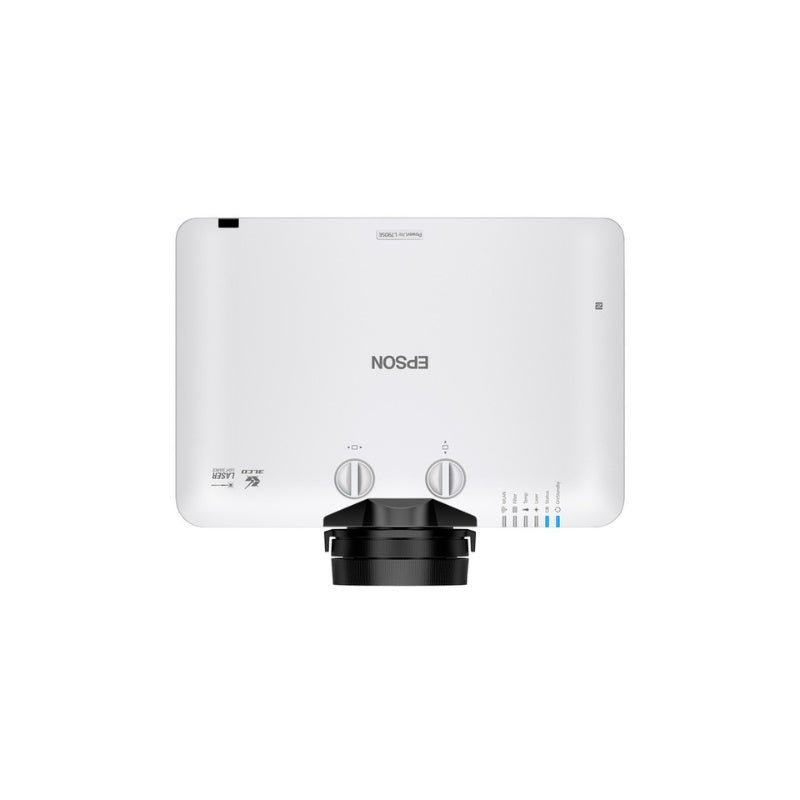

• Lens Shift: Vertical: ±50%; Horizontal: ±20%
• Keystone Correction: Vertical: ±30 degrees; Horizontal: ±30 degrees
• Light Source: Laser diode
• Light Source Life: Normal: 20,000 hours; Quiet: 20,000 hours; Extended: 30,000 hours

Projection Lens (Short Throw):

• Type: Optical zoom (manual)/focus (manual)/corner focus (manual)
• F-Number: 1.7 – 2.1
• Focal Length: 11.6 mm – 19.9 mm
• Zoom Ratio: 1.0 – 1.7x (optical)
• Throw Rate Range: 0.79 – 1.36 (optical)
• Lens Cover: Lens cap (without string)

Other Features:

• Operating Temperature: 32˚F to 113˚F (0˚C to 45˚C)
• Power Supply Voltage: 100V – 240V ± 10%, 50/60 Hz AC
• Auto Power On: Signal Detection On HDMI/Plug-In Detection (HDMI, USB, VGA 15-Pin, BNC)
• Sleep Mode: Yes (with timer)
• HDMI CEC Control: Yes
• Power Consumption:
  470W (Normal Mode)
  341W (Quiet and Extended)
  2.4W (Standby comm on)
  0.3W (Standby comm off)
• Fan Noise: 36dB (Normal Mode); Max. 26dB (ECO Mode)
• Security: Security cable hole, Kensington lock provision
• A/V Mute: Yes
• Speaker(s): 10W (mono)
• Split Screen: Yes (up to 2 screens)
• Content Playback: Yes
• Quick Corner: Yes
• Arc Correction: Yes
• Edge Blending: Yes
• Screen Sharing: Yes
• Corner Wall: Yes
• Curved Surface: Yes
• Camera: Optional
• Miracast: Yes
• Epson iProjection: Yes (V4)
• Apple AirPlay 2: Yes

Effective Scanning Frequency Range (Digital):

• Pixel Clock: 25.1 MHz to 594 MHz
• Horizontal: 26 kHz to 135 kHz
• Vertical: 23.98/24/25/29.97/30/50/59.94/60 Hz

Dimensions:

• Dimensions Excluding Feet: 17.32"W x 11.97"D x 4.80"H
• Dimensions Including Feet: 17.32"W x 14.25"D x 5.94"H
• Weight: 20.5 lbs

Network and Remote Control Features:

• Remote Control Features: Power, source search selection, A/V mute, number input, menu, esc, select, freeze, ID, customize, e-zoom, mute, volume, playback control and pointer functions
• Operating Angle:
  Rear: Right/Left: -55 to +55 degrees
  Upper/Lower: +75 to +15 degrees
  Front: right/left: -30 to +30 degrees
  Upper/Lower: 0 to +60 degrees
• Operating Distance: 26 ft (8m)
• Network Control: PJLink, Creston Integrated Partner, Crestron Connected V2 With XiO Cloud, Extron IP Link, Extron XTP, AMX, Control4

Eco Features:

• RoHS compliant
• End-of-life options available
• Design and manufacturing centers utilize 100% renewable electricity
• Dynamic Contrast (ECO) Mode reduces power consumption by 36%

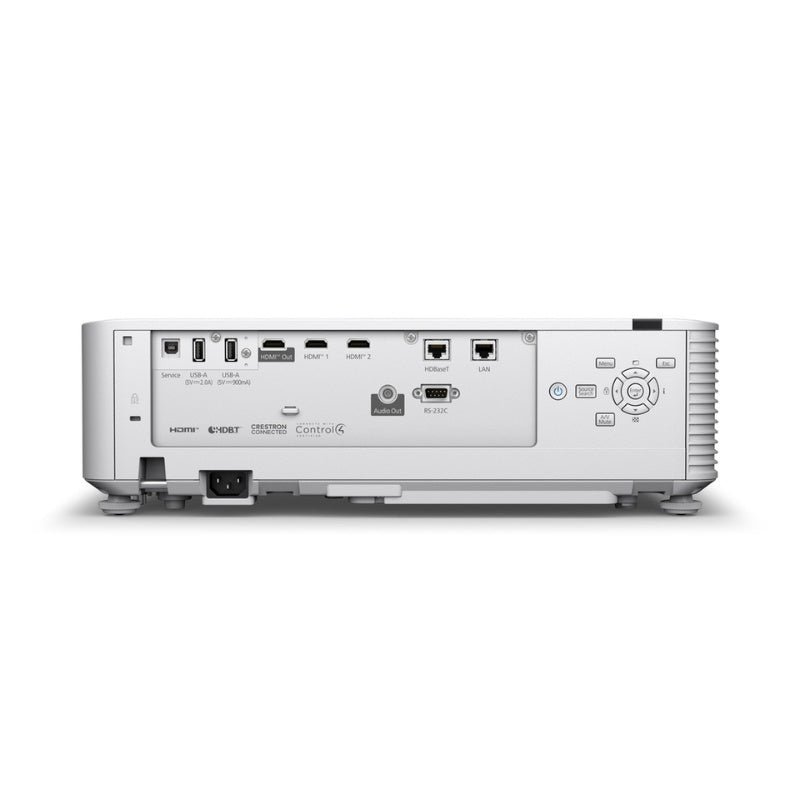

Interfaces:

• (2) HDMI (HDCP 2.3)
• (1) HDMI Out
• (1) HDBaseT
• (1) Variable Audio Out: Mini Stereo
• (1) USB Connector Type-A
• (1) USB Connector Type-B
• (1) Serial: RS-232C
• (1) Wired LAN RJ45
• Wireless LAN: Built-in

FAQ

Q: What is the difference between the PowerLite L795SE and L790SE projectors?
A: The only difference between the L795SE and L790SE is the color of the projector. The L795SE comes in black, while the L790SE comes in white. Both models have identical specifications and features.

Q: What is the maximum display size for the PowerLite L790SE?
A: The L790SE can achieve large, shadow-free displays up to 400" diagonal with a 0.79 – 1.36 throw ratio.

Q: Does the projector support wireless screen casting?
A: Yes, it supports Epson iProjection, Apple AirPlay 2, Miracast, and features Wi-Fi 6/6E for fast, secure wireless connectivity.

Q: How long is the laser light source expected to last?
A: The laser light source and air filter are virtually maintenance-free for up to 30,000 hours in Extended Mode.

Q: Can this projector be used for multi-projector installations?
A: Yes, the optional PixAlign camera unlocks advanced features such as screen matching, auto color calibration, blending assist, and stacking.

Q: What’s included with my purchase?
A: The projector, power cable, remote control with batteries, quick setup sheet, cable cover, and quick setup poster are included.

Q: How can I monitor and manage the projector remotely?
A: You can monitor, control, and update the L790SE remotely using the Epson Projector Management Connected app and built-in wireless networking.

Documents

• Epson L790SE Specifications Sheet
