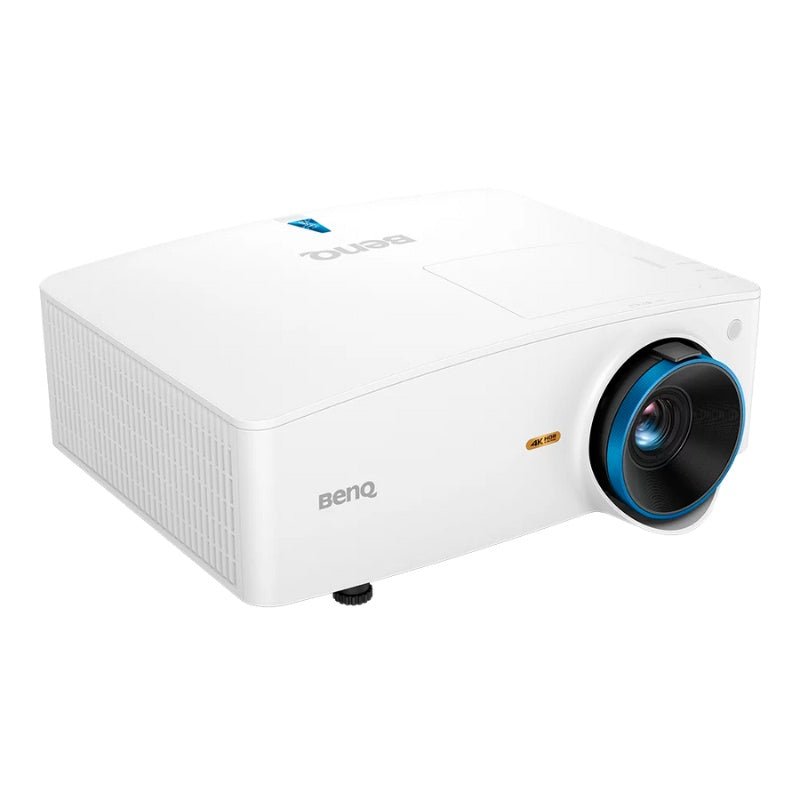

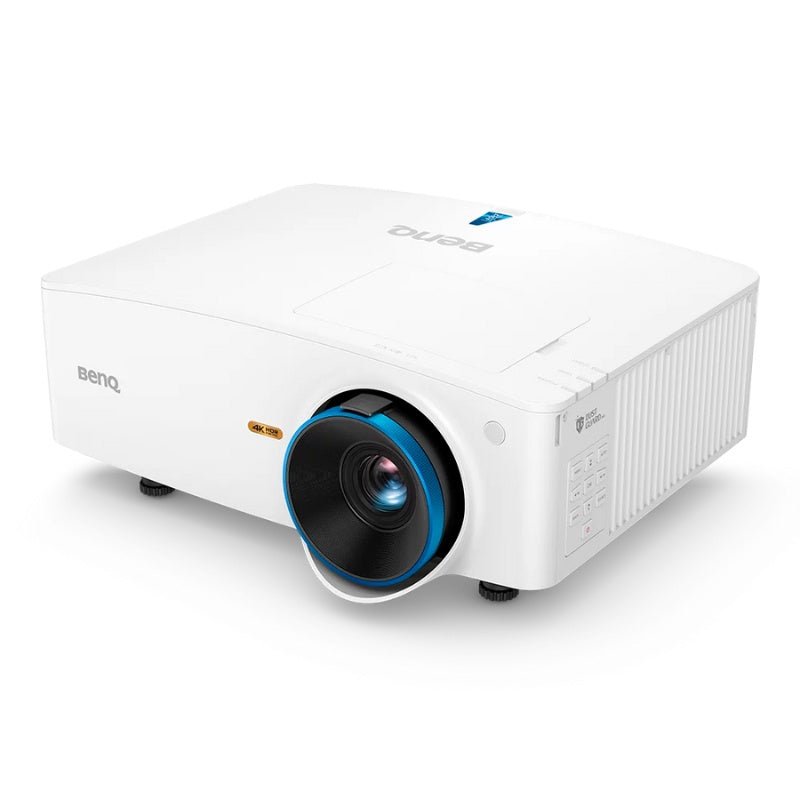

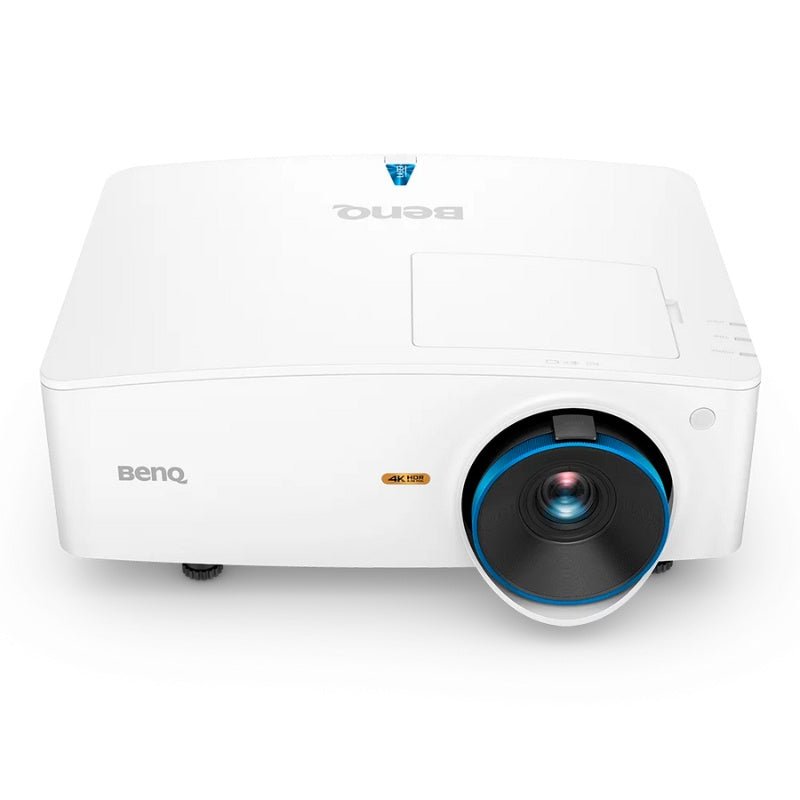

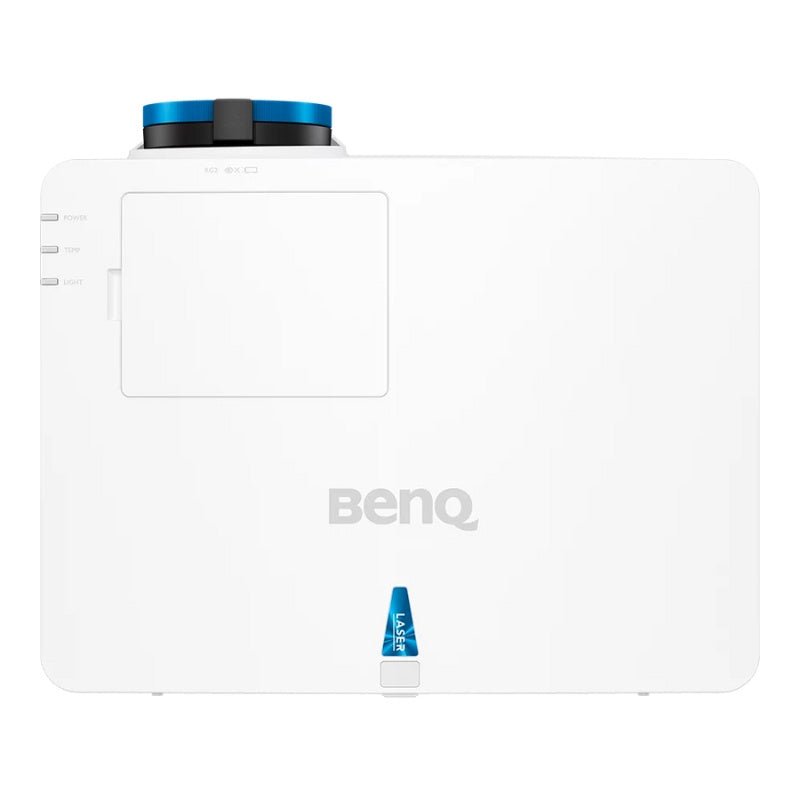

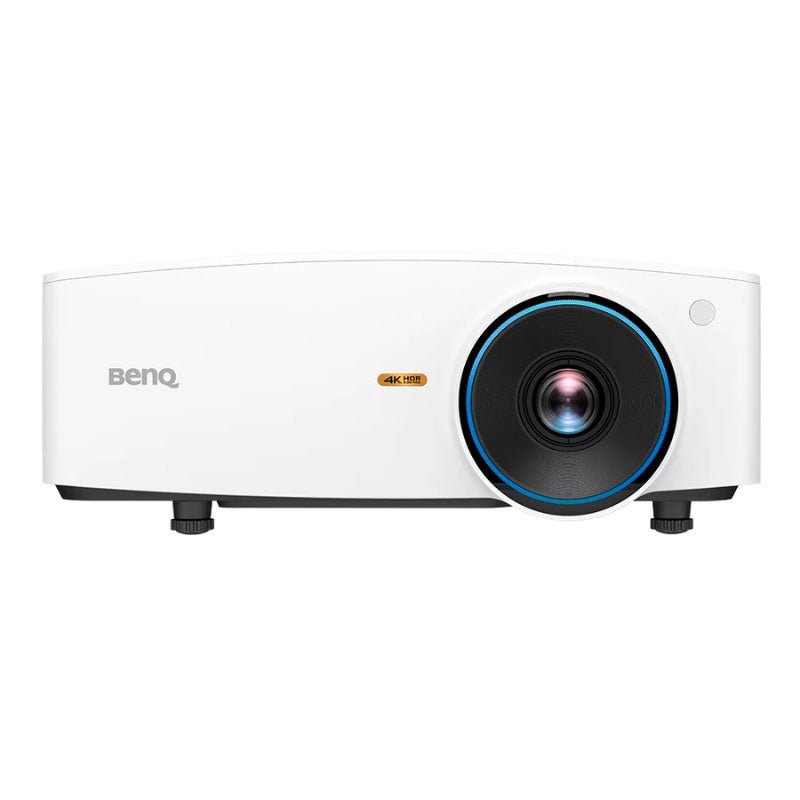

BenQ LK935 5500 Lumen 4K Laser Normal Throw Golf Simulator Projector

4K UHD High Resolution
Experience superior image quality compared to WUXGA, ensuring every detail is crisp and clear. 5500 lumen high brightness delivers golf simulator images with absolute clarity, even in well-lit environments. DLP technology delivers unmatched contrast, ensuring your golf simulator images stand out against both light and dark backgrounds.



Wide Throw Ratio
Project up to a 200-inch display from just 6 meters away, accommodating even the most unorthodox impact screen requirements. The LK935 has the capability to accommodate a 21:9 aspect ratio so you can display wider images for nearly any space requirement.



Flexible Installation for Your Convenience
The LK935 offers multiple installation options for a hassle-free setup including H/V Lens Shift so you can easily adjust the image vertically and horizontally to precisely fit your screen without moving the projector.

3D Keystone Correction allows you to correct trapezoidal distortion for ideal projection alignment, while 1.6x Zoom enables you to upgrade your projector without changing existing ceiling mounts, saving time and costs. Utilizing 360° Rotation Projection, present golf simulator images from any angle, including ceilings, walls, or floors.



Reliability Meets Low Maintenance

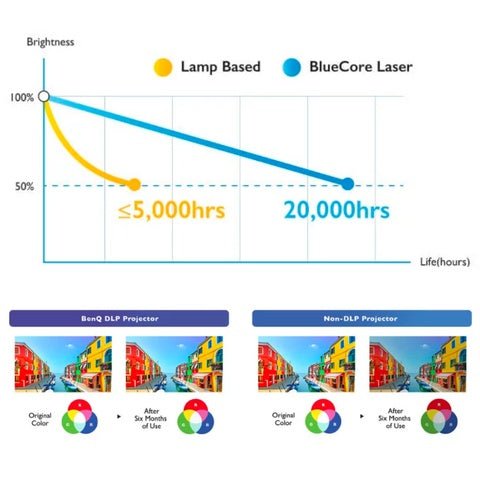

The BenQ LK935 is built for long-lasting performance with minimal maintenance. Enjoy 20,000-hour longevity with DustGuard Technology that protects optical components and eliminates image spots due to debris, reducing service costs. Say goodbye to filter maintenance so you can spend more time improving your game.

• BenQ LK935
• Remote Control with Battery
• Power Cord
• Installation Guide
• Warranty Card

All Specifications

Display:

• Brightness (ANSI lumens): 5500
• Native Resolution: 4K UHD (3840x2160)
• Native Aspect Ratio: 16:9
• Selectable Aspect Ratios: 16:9, 16:10, 4:3, 2.4:1, 21:9
• Contrast Ratio (FOFO): 3,000,000:1
• Display Color: 30-bit (1.07 billion colors)
• Light Source: Laser
• Light Source Life: a. Normal 20000 hrs

Optical:

• Throw Ratio: 1.36~2.18
• Zoom Ratio: 1.6x
• Lens: F/# =1.809 f= 8.6 ~ 9.4
• Projection Offset (Full-Height): 0%
• Keystone Adjustment: 3D, Vertical ± 30 degrees; Horizontal ± 30 degrees; Rotation ± 30 degrees
• Lens Shift Vertical: -60%~ +60%
• Lens Shift Horizontal: -23%~ +23%

Picture:

• Rec. 709 Coverage: 92%
• Picture Modes: 3D, Bright, DICOM SIM, Golf, Infographic, Presentation, sRGB, User 1, User 2, Video, Video Conference

Compatibility:

• Input Lag: 33.4 ms (1080p@60Hz)
• Resolution Support: VGA (640 x 480) to 4K UHD (3840 x 2160)
• Horizontal Frequency: 15K~135KHz
• Vertical Scan Rate: 23~240Hz

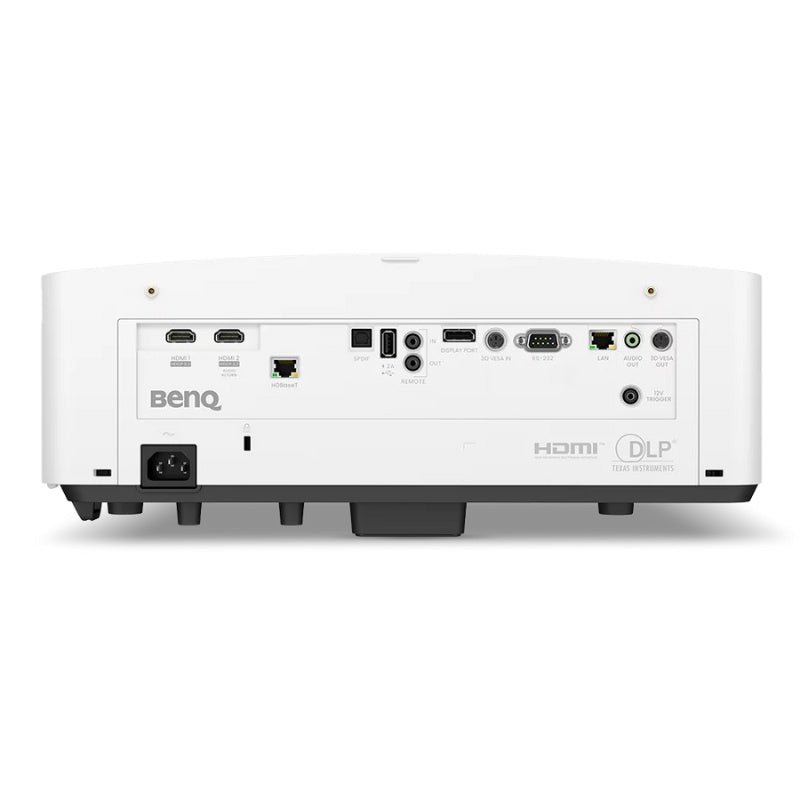

I/O Interface:

• HDMI in: (x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)
• Display Port: (x1)
• LAN (RJ45): (x1)
• HDBaseT (RJ45): (x1), Video/Audio
• 3D Sync in: (x1), VESA
• 3D Sync out: (x1), VESA
• USB Type A: (x1), USB Type A-1 (2.0/Power Supply2.0A)
• RS232 in (DB-9pin): (x1)
• Wired Remote in (3.5mm Mini Jack): (x1)
• Wired Remote out (3.5mm Mini Jack): (x1)
• DC 12V Trigger (3.5mm Jack): (x1)

Audio:

• Speaker: (x1), 10W
• Audio out (3.5mm Mini Jack): (x1)
• HDMI Audio Return: Yes, ARC, 5.1 channel
• S/PDIF: Multi-Channel, RAW

Environment:

• Operating Temperature: 0~40℃
• Power Supply: AC 100 to 240 V, 50/60 Hz
• Typical Power Consumption (110V): 440W
• Stand-by Power Consumption: <0.5W
• Network Stand-by Power Consumption: <2W
• Acoustic Noise (Typ./Eco.)(dB): 40/33

Accessories:

• Remote Control w/ Battery: RCA011
• Power Cord (by region): x1 (1.8M)
• 3D Glasses: (Optional), DGD5
• Installation Guide: Yes
• Warranty Card (by region): Yes
• Universal Ceiling Mount: (Optional), CM00G3

Dimension & Weight:

• Dimensions (WxHxD) (mm): 416x166x351
• Net Weight (kg): 7.0

Projection System:

• Projection System: DLP
