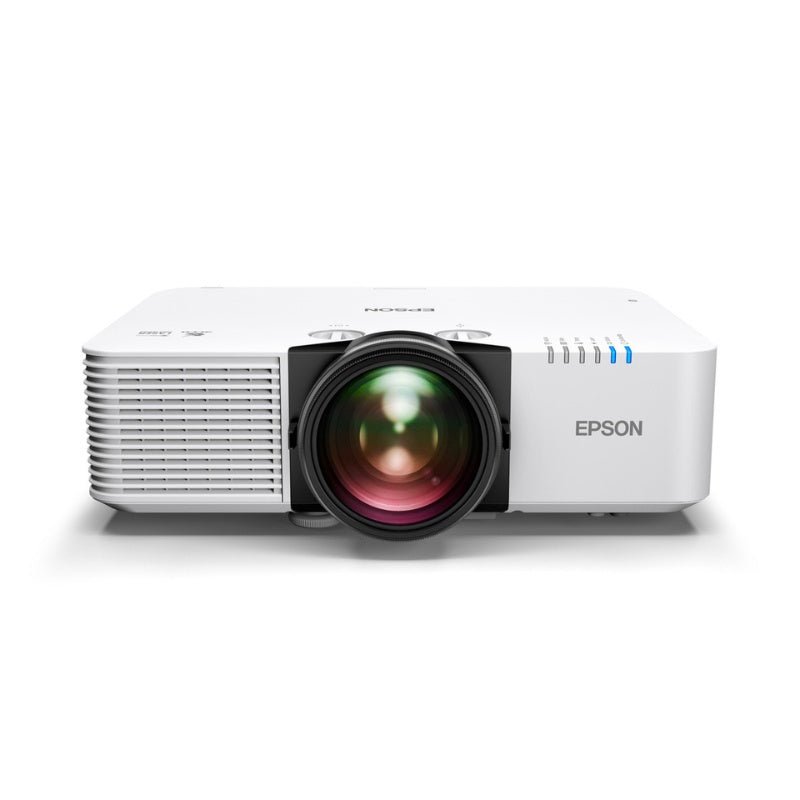

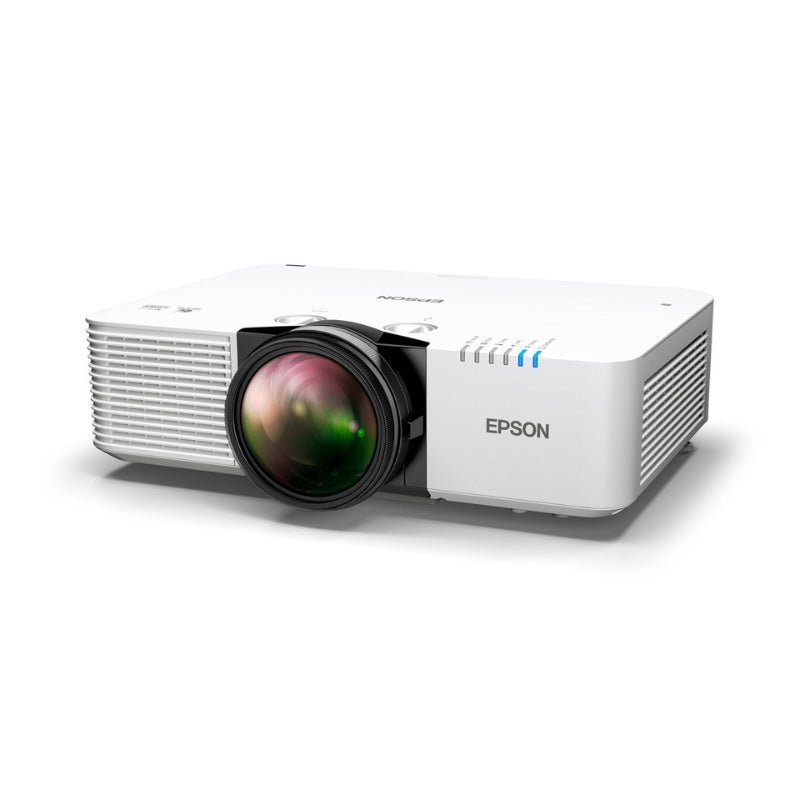

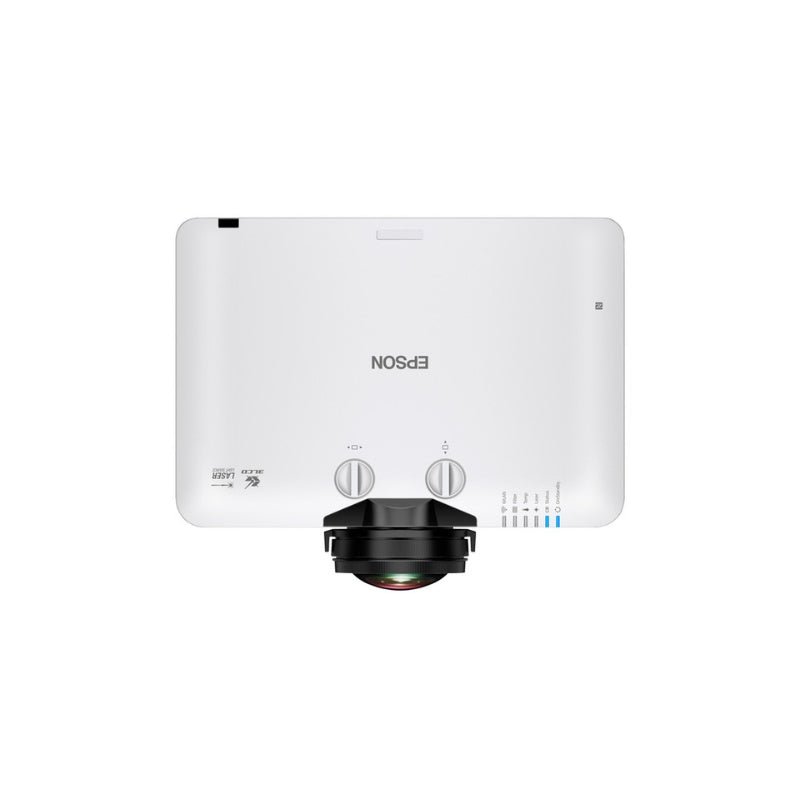

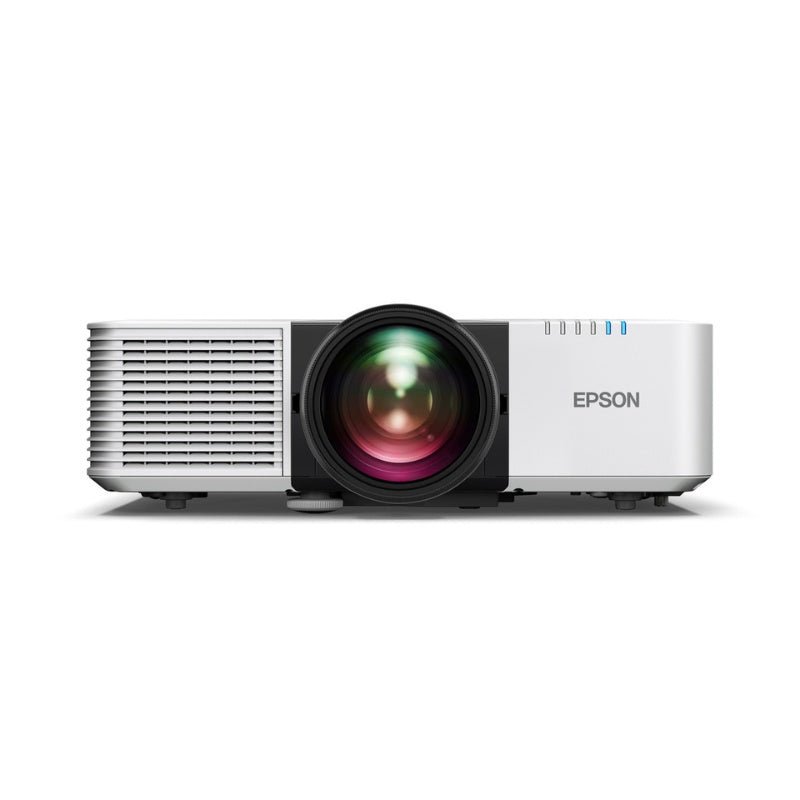

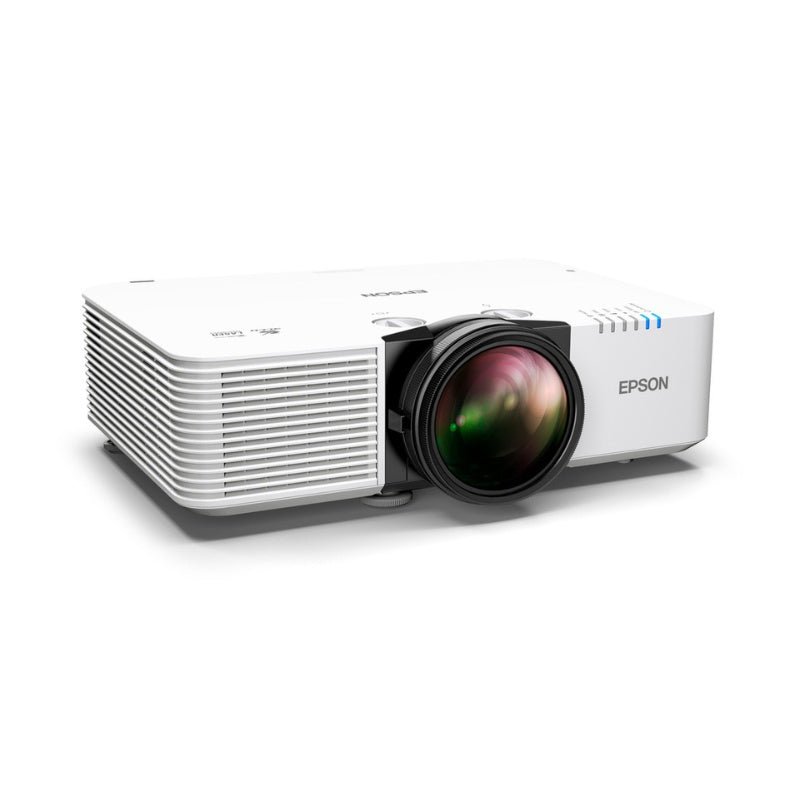

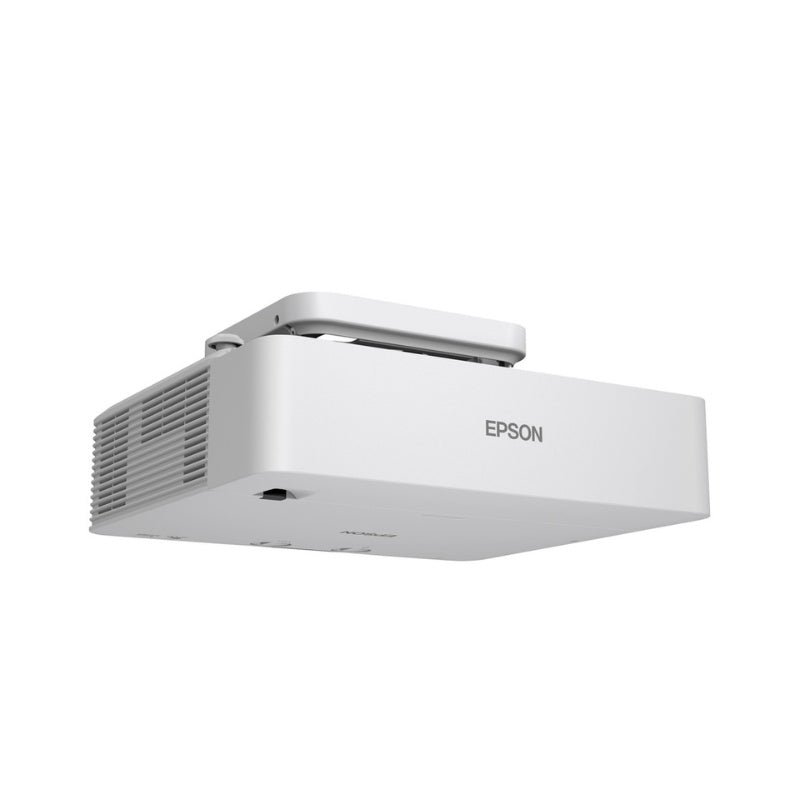

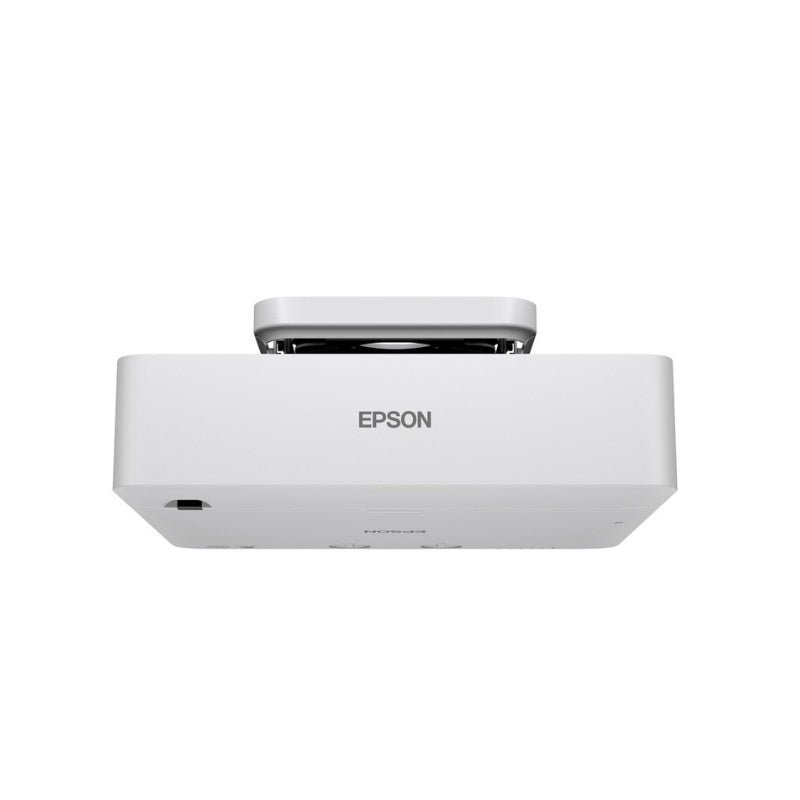

Epson L690SE PowerLite 6000-Lumen WUXGA Short Throw 3LCD Laser Projector with 4K Enhancement

Bright, True-to-Life Images
Delivers 6,000 lumens of equal color and white brightness for stunning clarity, even in well-lit rooms.

WUXGA with 4K Enhancement Technology
Accepts 4K content and displays double HD resolution, producing a visibly sharper, more detailed picture at close viewing distances.

Short Throw Lens with Powerful Optical Zoom
Features a 0.5 – 0.7 throw ratio and 1.4x optical zoom to achieve large images from short distances - ideal for flexible installations.

Large, Versatile Display Options
Supports displays up to 500" diagonal in 16:10, as well as ultra wide 16:6 and 21:9 aspect ratios for enhanced visibility and content versatility.

Simplified Installation

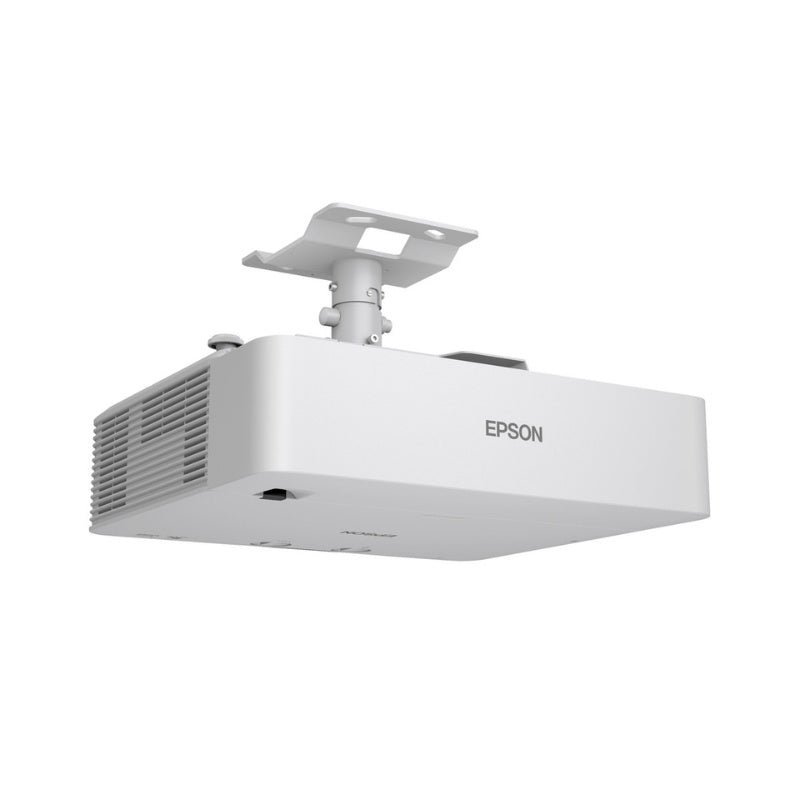

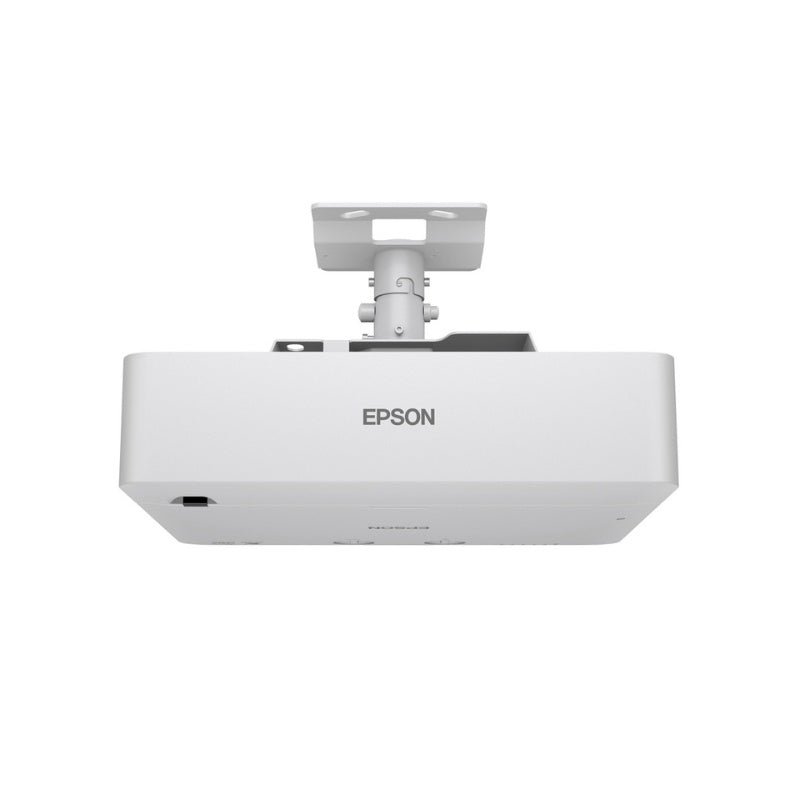

Compact and lightweight design with wide lens shift, 360-degree mounting, and built-in geometric correction tools for easy setup.

Low Maintenance Operation
Up to 30,000-hour virtually maintenance-free laser light source and air filter in Extended Mode.

Advanced Connectivity
Includes HDBaseT and HDMI (two in, one out) for daisy-chaining, signal monitoring, and flexible integration.

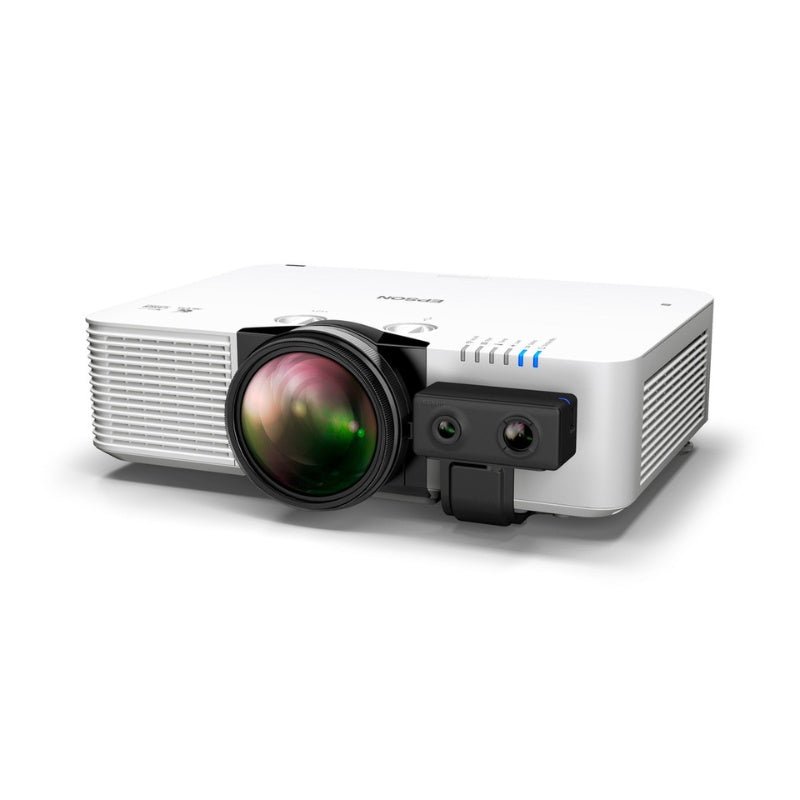

Optional Attachable PixAlign Camera
Adds powerful multi-projector tools like screen matching, auto color calibration, and blending assist for wide and stacked displays.

Built-in NFC and Over-the-Air Updates
Simplifies setup and maintenance with quick configuration and optional firmware update notifications.

Included with Your Purchase:

• Epson L690SE PowerLite 6000-Lumen WUXGA Short Throw 3LCD Laser Projector with 4K Enhancement
• Power Cable
• Projector Remote Control With Batteries
• Quick Setup Sheet
• Cable Cover
• Quick Setup Poster

General Specifications:

• Projection System: RGB liquid crystal shutter projection system
• Projection Method: Front/rear/ceiling mount
• LCD Size: 0.67" (C2 Fine)
• Driving Method: Poly-Silicon TFT Active Matrix
• Pixel Number: 2,304,000 Dots (1920 x 1200) x 3
• Native Resolution: WUXGA With 4K Enhancement (1920 x 1200 x 2)
• Resolution On-Screen: WUXGA With 4K Enhancement / 4.6 million pixels
• Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050
• Aspect Ratio: Supports 4:3, 16:10, 16:9*, 16:6*, 21:9*
  * With vertical image shift control within letterbox area
• Pixel Arrangement: Cross stripe
• Color Brightness: Color Light Output: 6,000 lumens
• White Brightness: White Light Output: 6,000 lumens
• Contrast Ratio: Up to 5,000,000:1
• Brightness Uniformity (Typical): 88%
• Color Reproduction: Up To 1.07 billion colors
• Size (Projected Distance): 100" – 500"
• Projected Distance: 80" Screen 1.38 M
• Lens Shift: Vertical: ±50%; Horizontal: ±20%
• Keystone Correction: Vertical: ±30 degrees; Horizontal: ±30 degrees
• Light Source: Laser Diode
• Light Source Life: Normal: 20,000 hours; Quiet: 20,000 hours; Extended: 30,000 hours

Projection Lens (Short Throw):

• Type: Optical Zoom (manual)/Focus (manual)/Corner focus (manual)
• F-Number: 1.8 – 2.0
• Focal Length: 7.54 mm – 10.55 mm
• Zoom Ratio: 1.0 – 1.4x (optical)
• Throw Rate Range: 0.5 – 0.7 (optical)
• Lens Cover: Lens cap (without string)

Other Features:

• Operating Temperature: 32˚F to 113˚F (0˚C to 45˚C)
• Power Supply Voltage: 100V – 240V ± 10%, 50/60 Hz AC
• Auto Power On: Signal Detection On HDMI/Plug-In Detection (HDMI, USB, VGA 15-Pin, BNC)
• Sleep Mode: Yes (with timer)
• HDMI CEC Control: Yes
• Power Consumption:
  432W (Normal Mode)
  313W (Quiet and Extended)
  2.4W (Standby comm on)
  0.3W (Standby comm off)
• Fan Noise: 36dB (Normal Mode); Max. 26dB (ECO Mode)
• Security: Security Cable hole, Kensington lock provision
• A/V Mute: Yes
• Speaker(s): N/A
• Split Screen: Yes (Up to 2 screens)
• Content Playback: Yes
• Quick Corner: Yes
• Arc Correction: Yes
• Edge Blending: Yes
• Screen Sharing: Yes
• Corner Wall: Yes
• Curved Surface: Yes
• Camera: Yes

Effective Scanning Frequency Range (Digital):

• Pixel Clock: 25.1 MHz To 594 MHz
• Horizontal: 26 kHz To 135 kHz
• Vertical: 23.98/24/25/29.97/30/50/59.94/60 Hz

Dimensions:

• Dimensions Excluding Feet: 17.32"W x 11.97"D x 4.80"H
• Dimensions Including Feet: 17.32"W x 14.25"D x 5.94"H
• Weight: 20.5 lbs

Network and Remote Control Features:

• Remote Control Features: Power, source search selection, A/V mute, number input, menu, esc, select, freeze, ID, customize, e-zoom, mute, volume, playback control and pointer functions
• Operating Angle:
  Rear: Right/Left: -55 to +55 degrees
  Upper/Lower: +75 to +15 degrees
  Front: right/left: -30 to +30 degrees
  Upper/Lower: 0 to +60 degrees
• Operating Distance: 26 ft (8m)
• Network Control: PJLink, Creston Integrated Partner, Crestron Connected V2 With XiO Cloud, Extron IP Link, Extron XTP, AMX, Control4

Eco Features:

• RoHS compliant
• End-of-life options available
• Design And Manufacturing Centers Utilize 100% Renewable Electricity
• Dynamic Contrast (ECO) Mode reduces power consumption by 36%

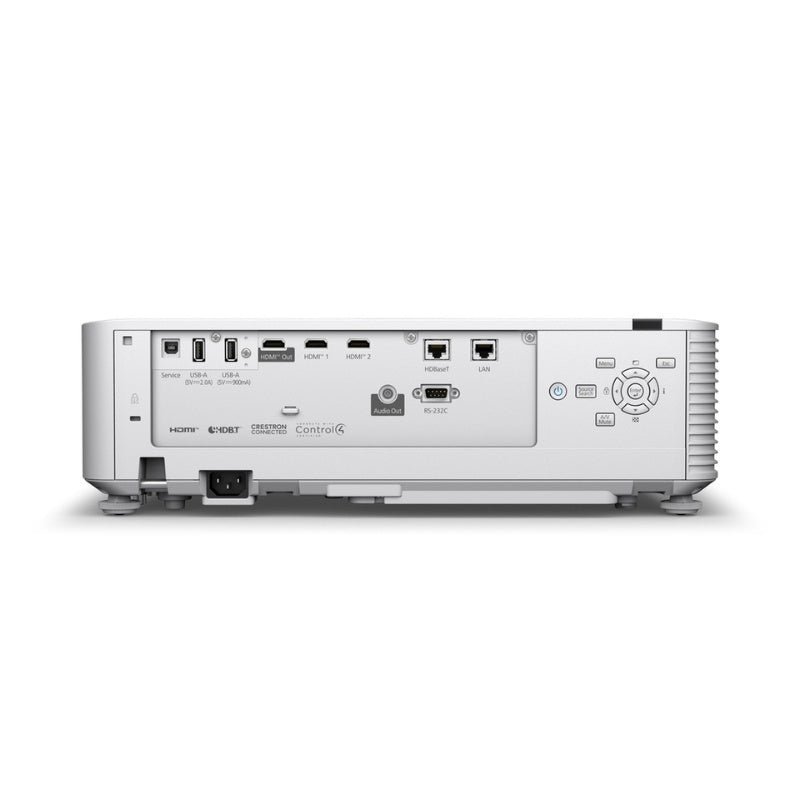

Interfaces:

• (2) HDMI (HDCP 2.3)
• (1) HDMI Out
• (1) HDBaseT
• (1) Variable Audio Out: Mini Stereo
• (1) USB Connector Type-A
• (1) USB Connector Type-B
• (1) Serial: RS-232C
• (1) Wired LAN RJ45

FAQ

Q: What is the difference between the PowerLite L695SE and L690SE projectors?
A: The only difference between the L695SE and L690SE is the color of the projector. The L695SE comes in black, while the L690SE comes in white. Both models have identical specifications and features.

Q: How large can the PowerLite L695SE or L690SE display?
A: Both projectors can create displays up to 500" diagonal with versatile aspect ratios, including 4:3, 16:10, 16:9*, 16:6*, 21:9*
* With vertical image shift control within letterbox area

Q: What is the expected lifespan of the laser light source?
A: The laser light source and air filter are designed to last up to 30,000 hours in Extended Mode for low-maintenance operation.

Q: Can these projectors be mounted at any angle?
A: Yes, both the PowerLite L695SE and L690SE support 360-degree installation, allowing for flexible mounting on walls, ceilings, or floors.

Q: Do the projectors support 4K content?
A: Yes, both models accept 4K content and display double HD resolution on-screen for sharp, detailed images.

Q: What connectivity options are available?
A: These projectors include HDBaseT, HDMI (two in and one out), USB, RS-232c, and RJ45 for comprehensive connectivity.

Q: What are some installation tools available?
A: Installation is streamlined with built-in NFC, wide lens shift, geometric correction tools, and the optional PixAlign camera for advanced multi-projector setups.
