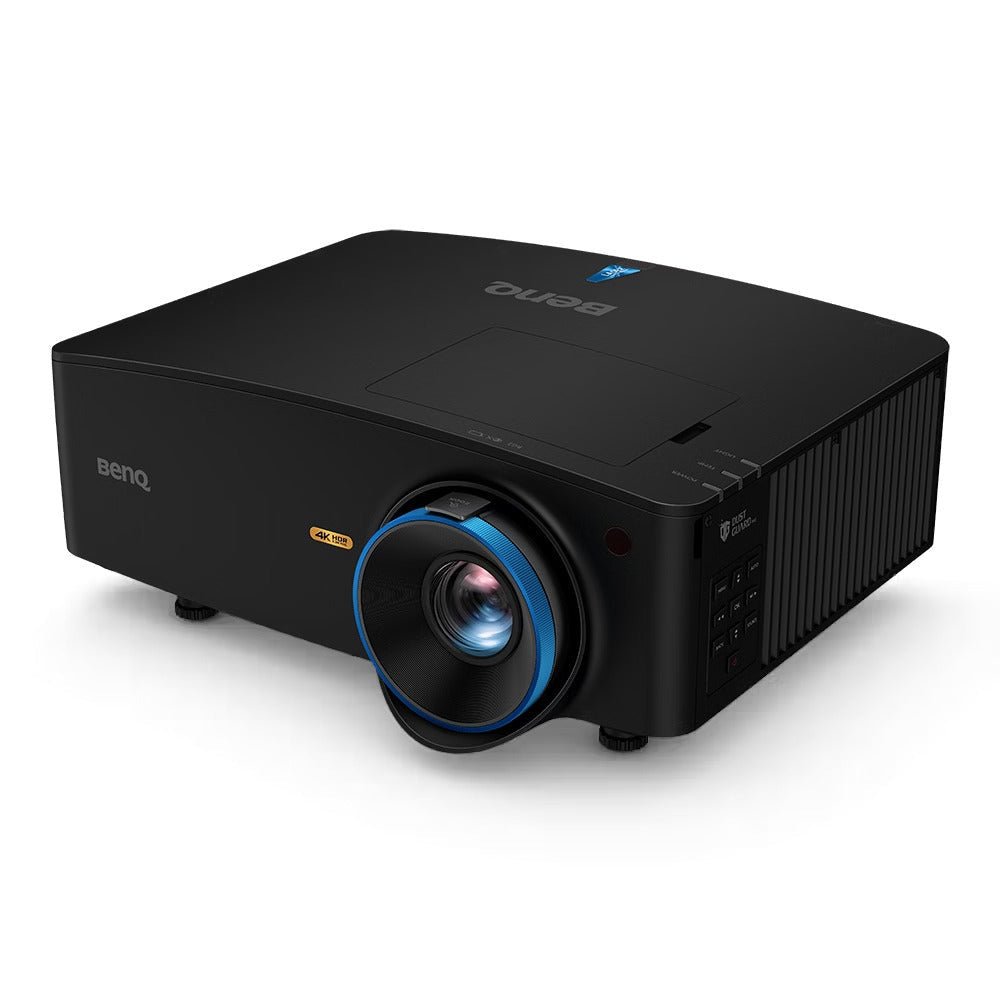

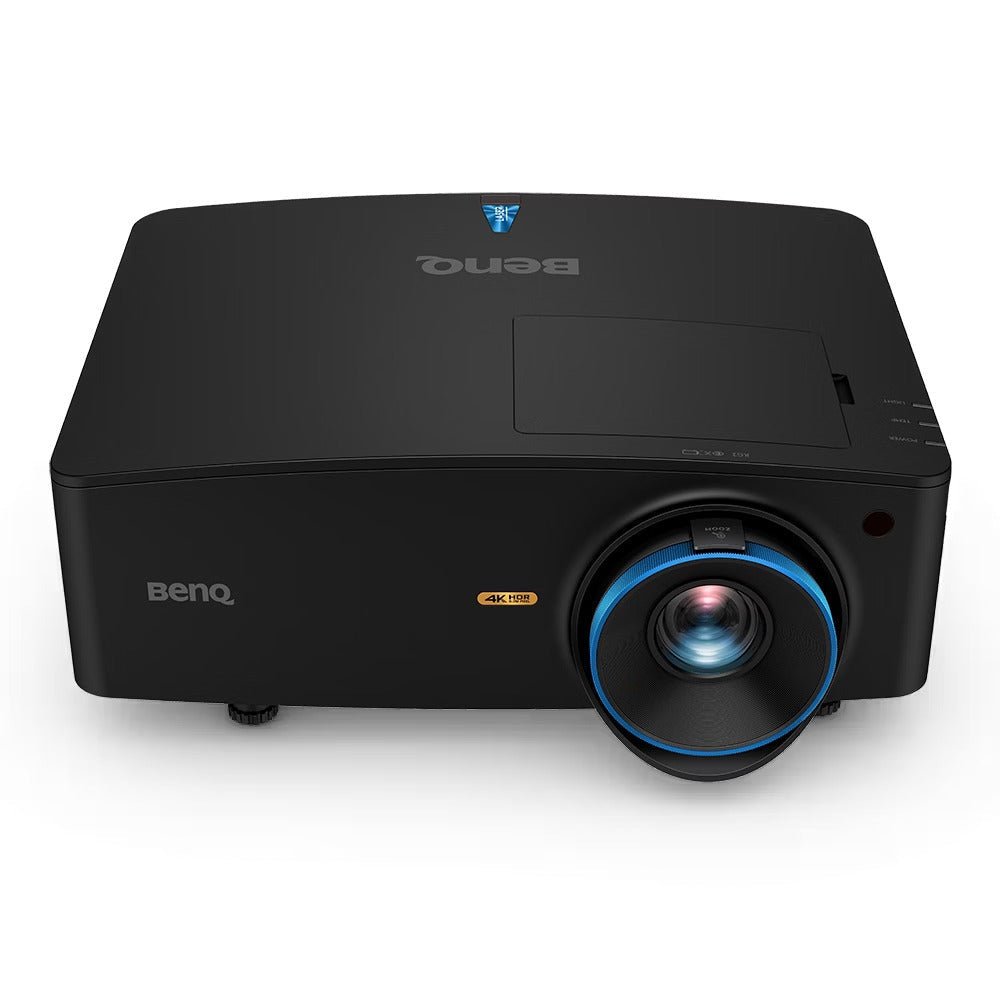

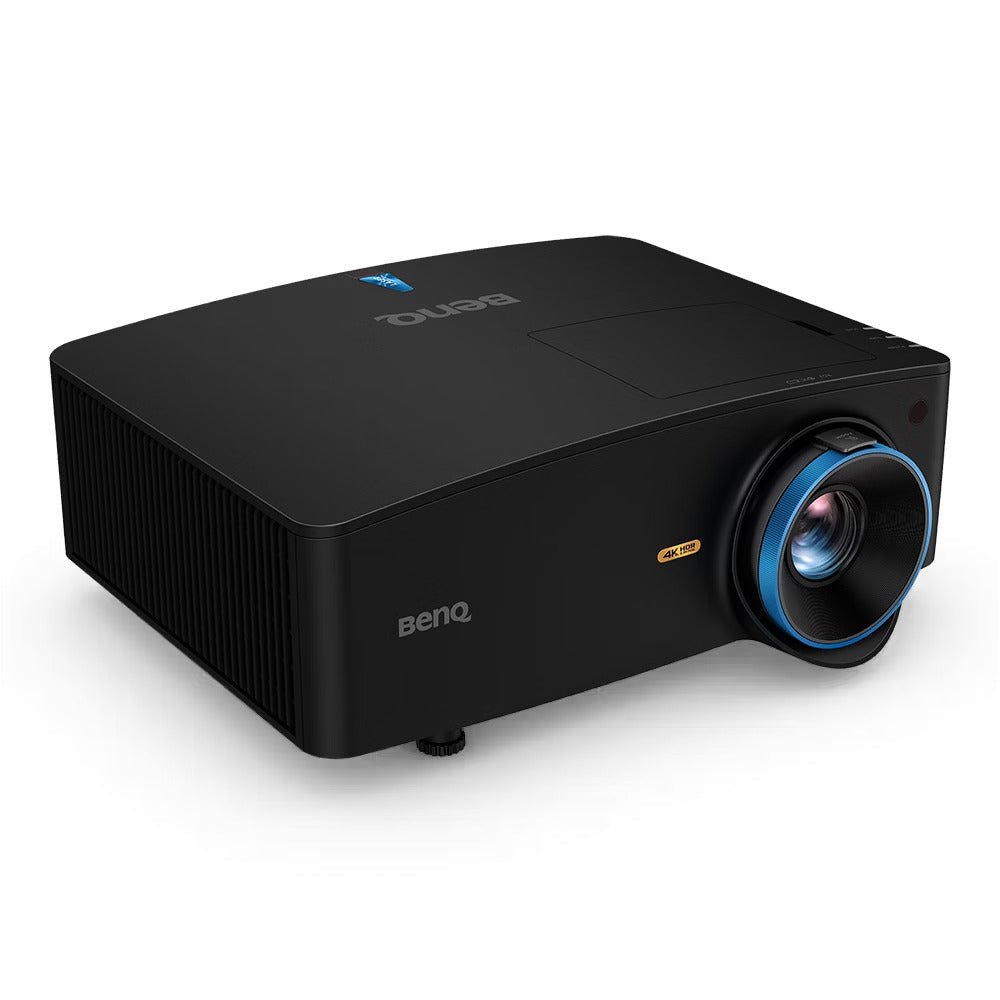

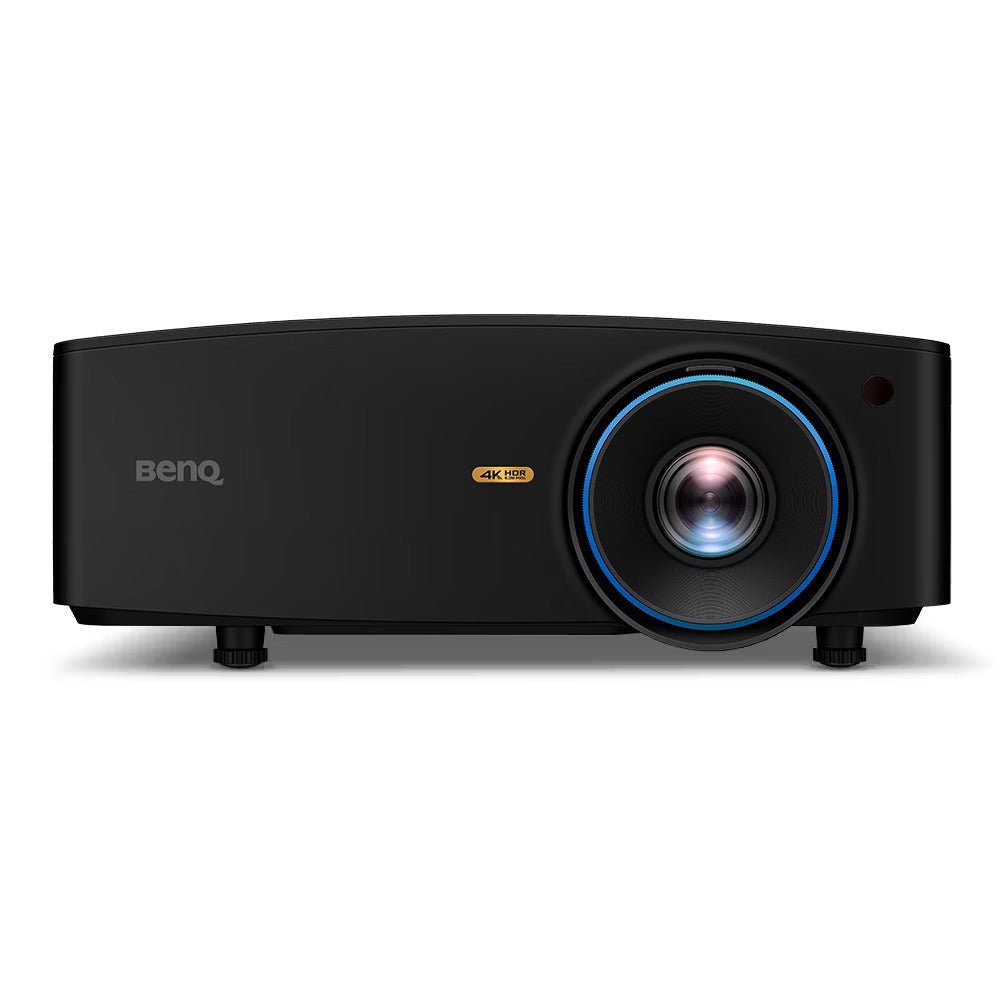

BenQ LK936ST 4K HDR Short Throw Laser Golf Simulator Projector

Crystal-Clear 4K UHD Visuals: Experience the LK936ST’s native 4K UHD (3840 × 2160) resolution with exceptional detail and clarity. Every aspect of the golf course is rendered with impressive precision, helping you see contours, textures, and fine visual details more clearly.

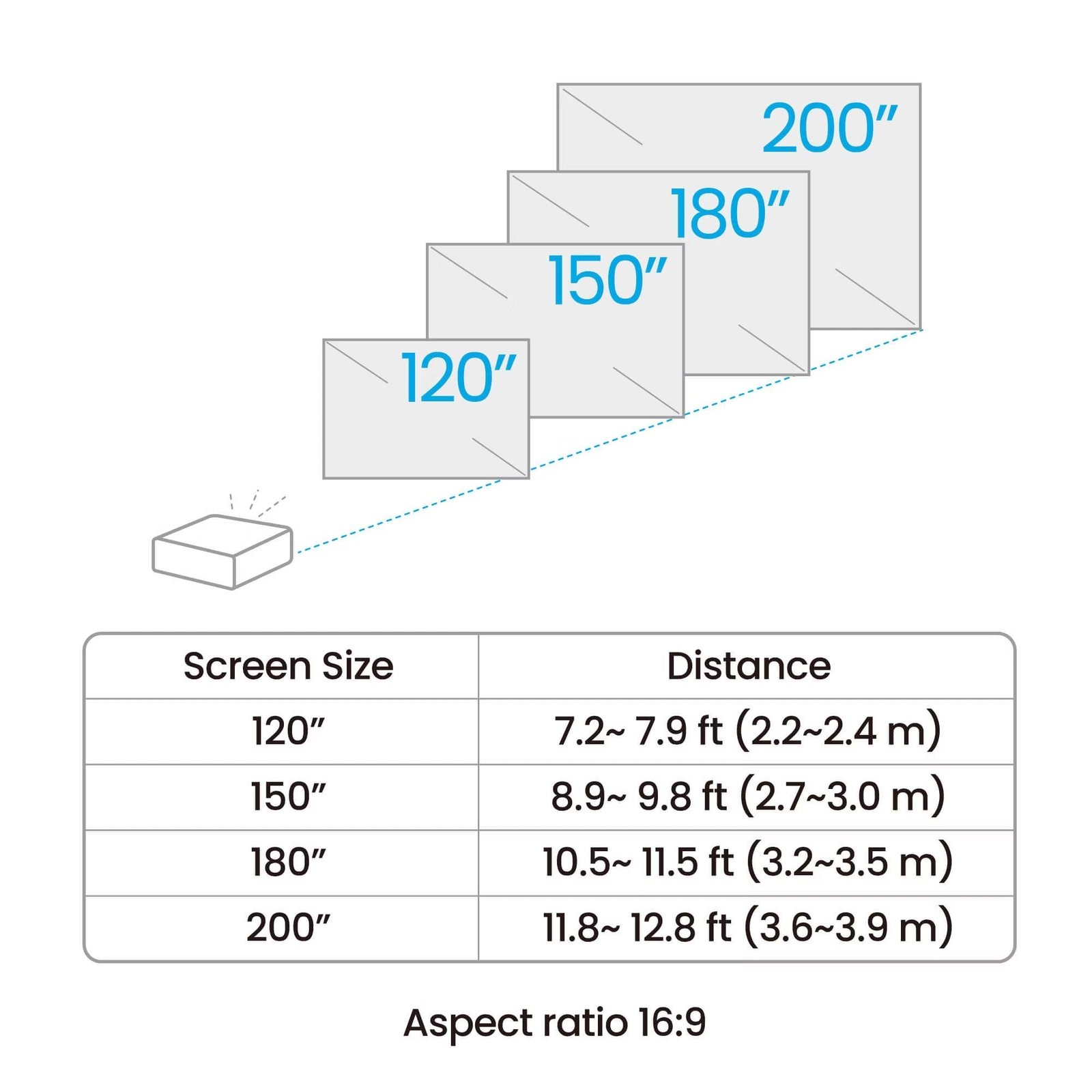

Short Throw Convenience
The LK936ST's short throw ratio ranging from 0.81~0.89 lets you enjoy large and immersive projections even in limited spaces. Achieve an expansive display without compromising on space, giving you more room to refine your swing and enjoy the game.

Impressive Brightness and Color
Experience visuals that pop. With a remarkable brightness of 5,100 ANSI Lumens, the LK936ST ensures your simulation environment remains vibrant and lifelike even in well-lit conditions.

Comprehensive Connectivity
Seamlessly integrate your simulator setup with versatile connectivity options. The LK936ST offers HDMI, USB, and LAN ports to accommodate your devices, software, and peripherals.

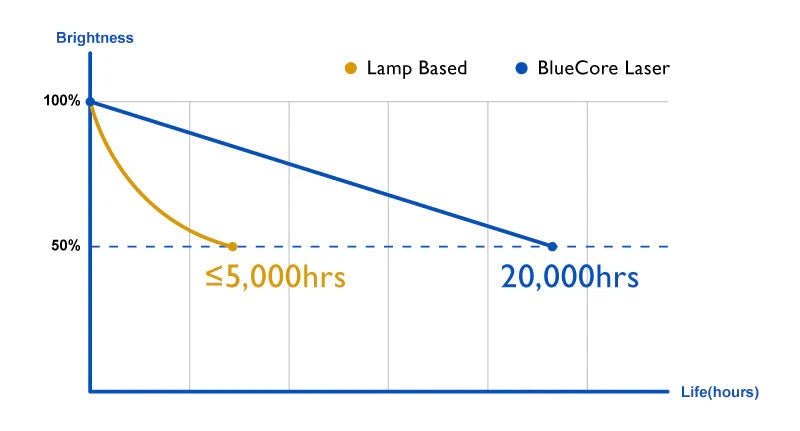

Reliable BlueCore Laser Technology
Equipped with BlueCore laser technology, the LK936ST guarantees reliable performance and consistent image quality. Say goodbye to concerns about lamp life – with an astonishing lifespan of up to 20,000 hours, this projector offers long-lasting excellence for countless rounds of golf.

Immersive Soundscapes
Step into the golfing atmosphere completely with the projector's built-in 10W speakers. Hear the rustling of the wind, the satisfying impact of the ball, and the reactions of the crowd. The LK936ST enhances your experience not only visually, but also acoustically.

• BenQ LK936ST Projector: 1 unit
• Remote Control with Batteries: 1
• Power Cord: 1
• HDMI Cable (1.8m): 1
• Installation Guide: 1
• Warranty Card: 1

Display:

• Brightness: 5100 ANSI Lumens
• Native Resolution: 4K UHD (3840×2160)
• Aspect Ratio: 16:9
• Contrast Ratio: 3,000,000:1
• Display Color: 30-bit (1.07 billion colors)
• Light Source: Laser
• Light Source Lifespan: Normal: 20,000 hours

Optical:

• Throw Ratio: 0.81~0.89
• Zoom Ratio: 1.1x
• Lens F/#: 1.83–1.86, Focal Length: 8.6–9.4
• Projection Offset: 0%
• Keystone Adjustment: 3D, Vertical ±40°, Horizontal ±40°, Rotation ±40°

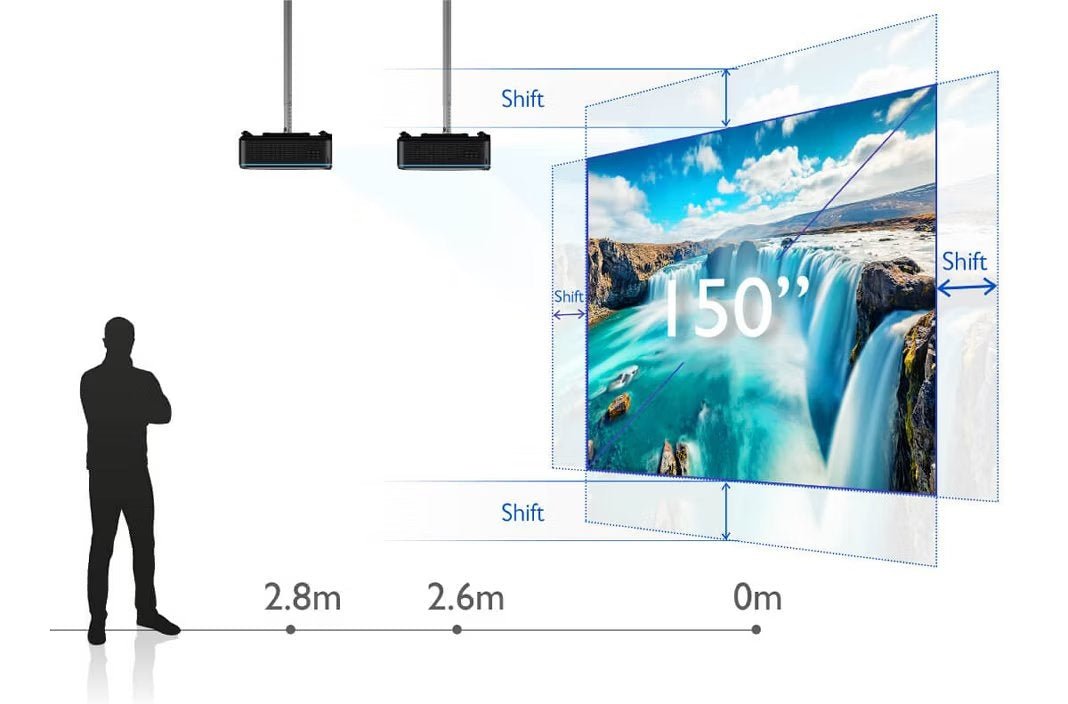

• Lens Shift: Vertical -60% to +60%, Horizontal -23% to +23%

Picture:

• Rec. 709 Coverage: 92%
• Picture Modes: 3D, Bright, DICOM SIM, Golf, Infographic, Presentation, sRGB, User 1, User 2, Video

Compatibility:

• Input Lag: 33.4 ms (1080p@60Hz)
• Supported Resolutions: VGA (640 x 480) to 4K UHD (3840 x 2160)
• Horizontal Frequency: 15K~135KHz
• Vertical Scan Rate: 23~240Hz

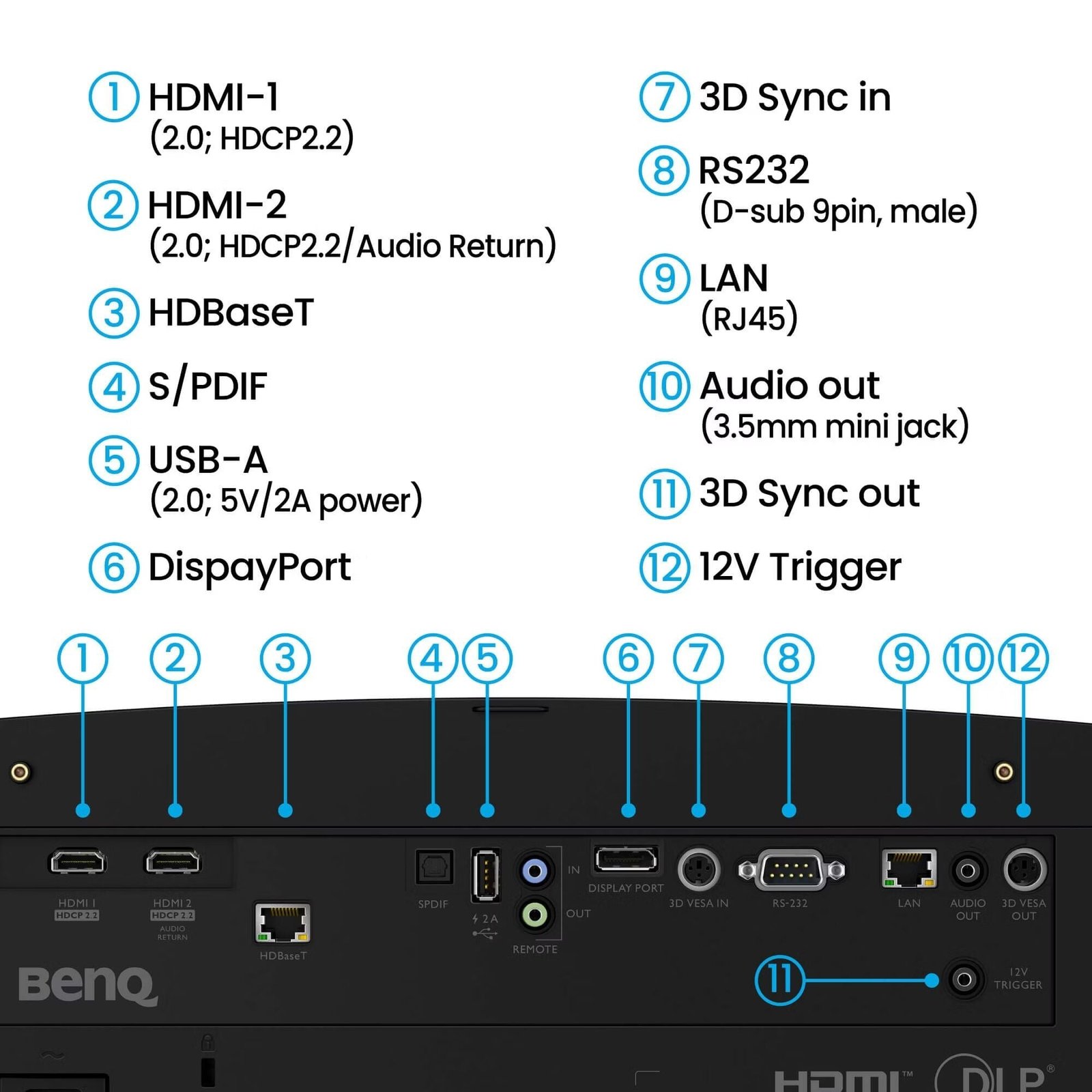

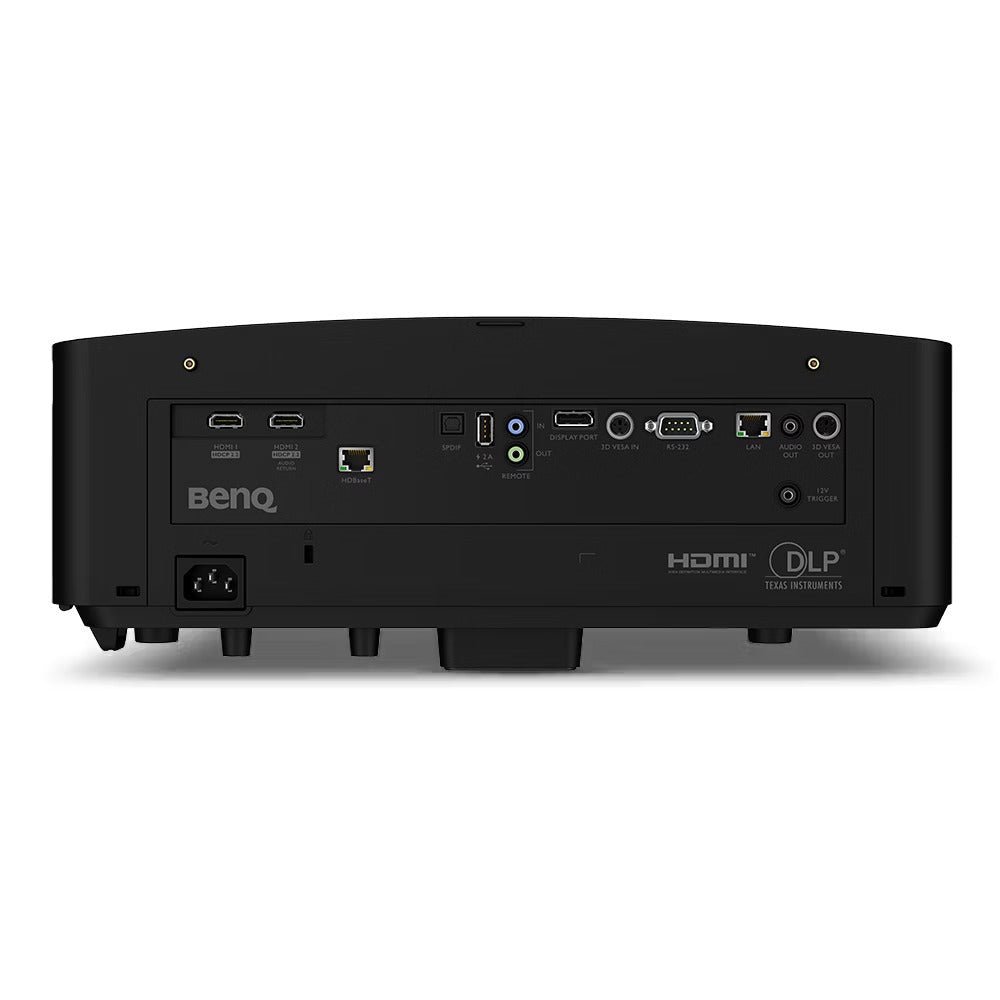

I/O Interface:

• HDMI Inputs: (x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)
• Display Port: (x1)
• LAN (RJ45): (x1)
• HDBaseT: (x1), Video/Audio
• 3D Sync In: (x1), VESA
• 3D Sync Out: (x1), VESA
• USB Type A: (x1), USB Type A-1 (2.0/Power Supply 2.0A)
• RS232 In: (x1, DB-9pin)
• Wired Remote In: (x1, 3.5mm Mini Jack)
• Wired Remote Out: (x1, 3.5mm Mini Jack)
• DC 12V Trigger: (x1, 3.5mm Jack)

Audio:

• Speaker: (x1), 10W
• Audio Out: (3.5mm Mini Jack)
• HDMI Audio Return: Yes, ARC, 5.1 channel
• S/PDIF: Multi-Channel, RAW

Environment:

• Operating Temperature: 0~40°C
• Power Supply: AC 100 to 240 V, 50/60 Hz
• Typical Power Consumption: 440W (110V)
• Standby Power Consumption: <0.5W
• Network Standby Power Consumption: <2W
• Acoustic Noise Level: 40/33 dB (Typ./Eco.)

Accessories:

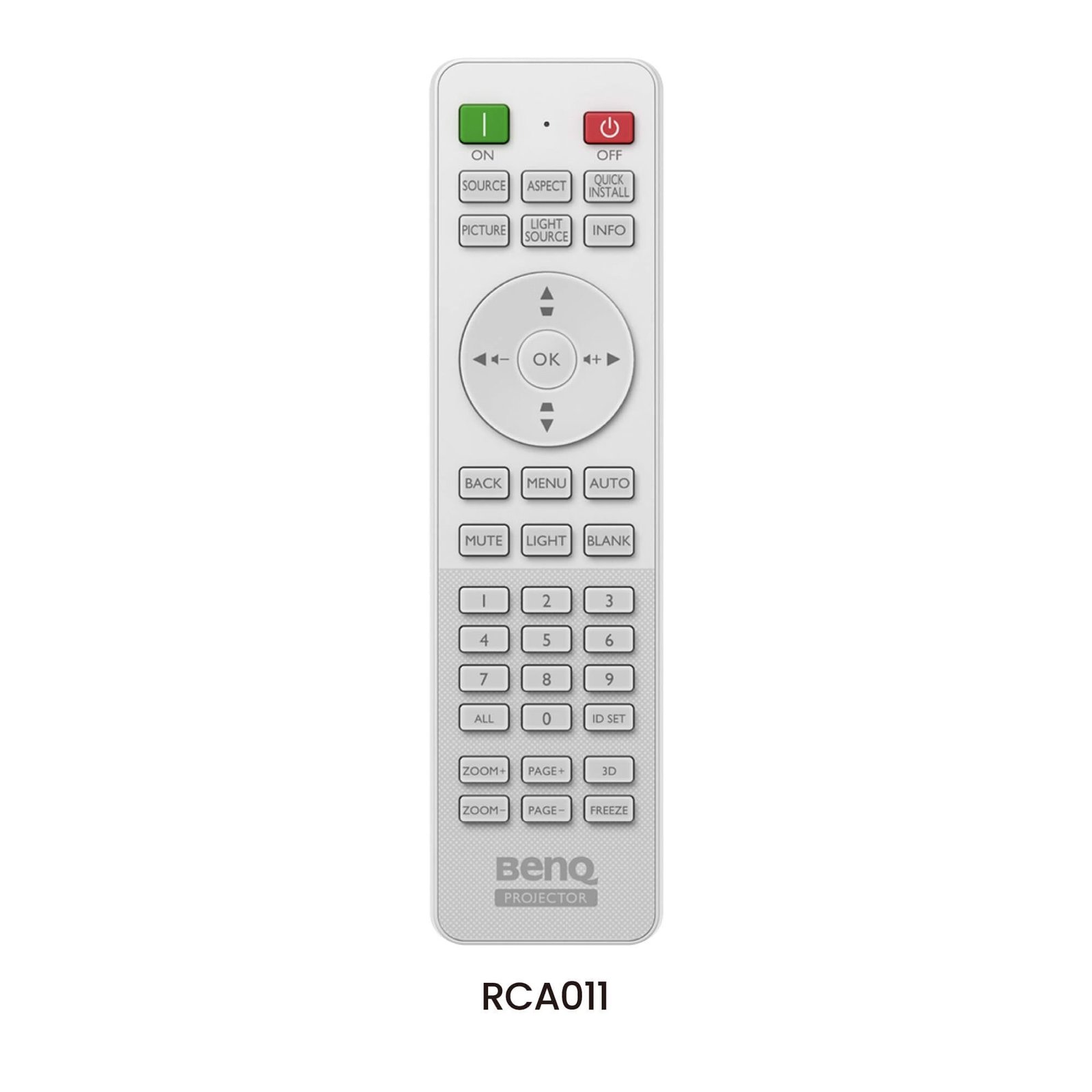

• Remote Control w/ Battery: RCA011
• Power Cord: (by region, Standard), 1.8m
• HDMI Cable: (Standard), 1.8m
• 3D Glasses: (Optional), DGD5
• Installation Guide: 1 (8L)
• Warranty Card: (by region)

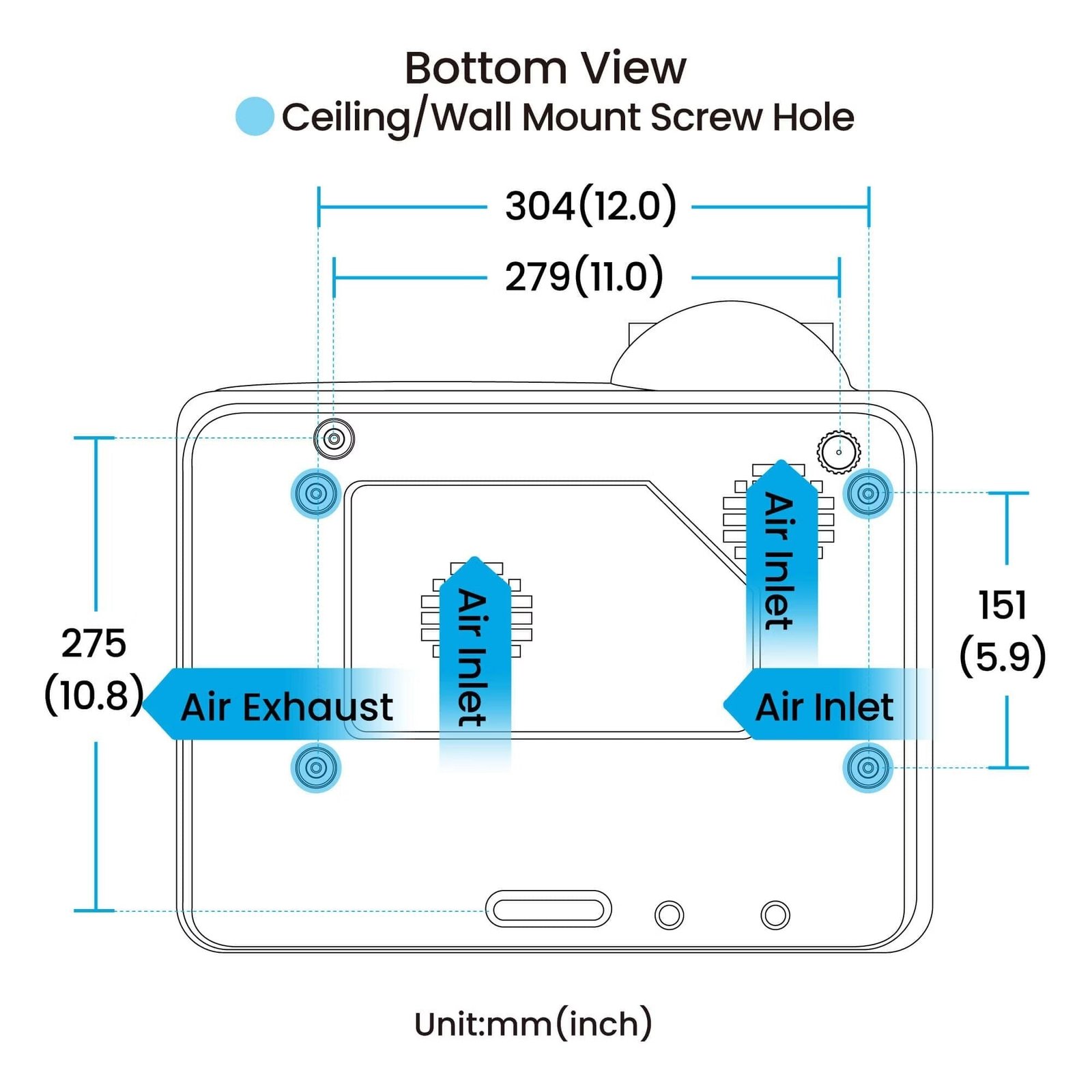

• Universal Ceiling Mount: (Optional), CM00G3

Dimensions & Weight:

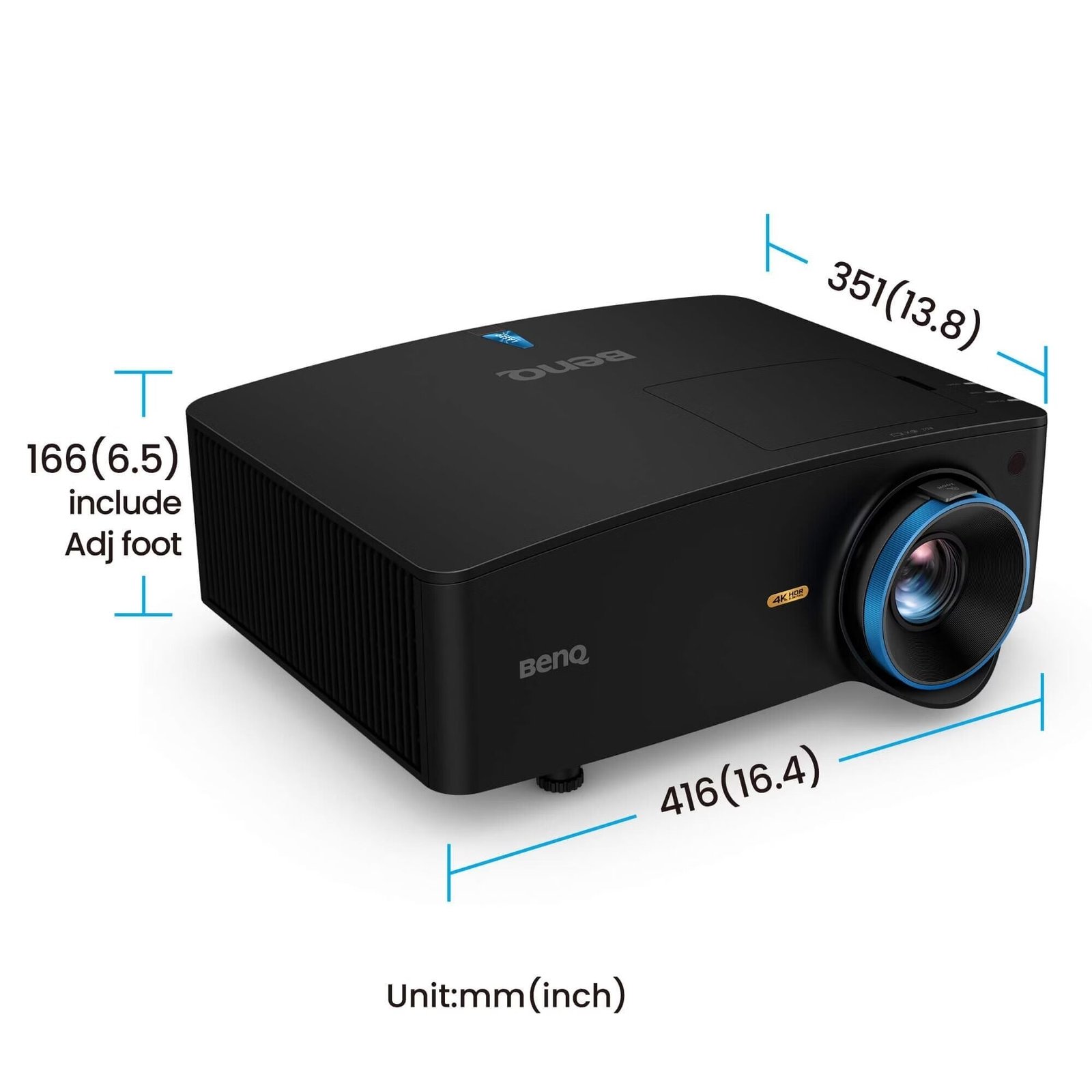

• Dimensions (WxHxD): 416x166x351 mm
• Weight: 7 kg

Projection System:

• Projection System Type: DLP

Resources:

BenQ LK936ST User Manual
