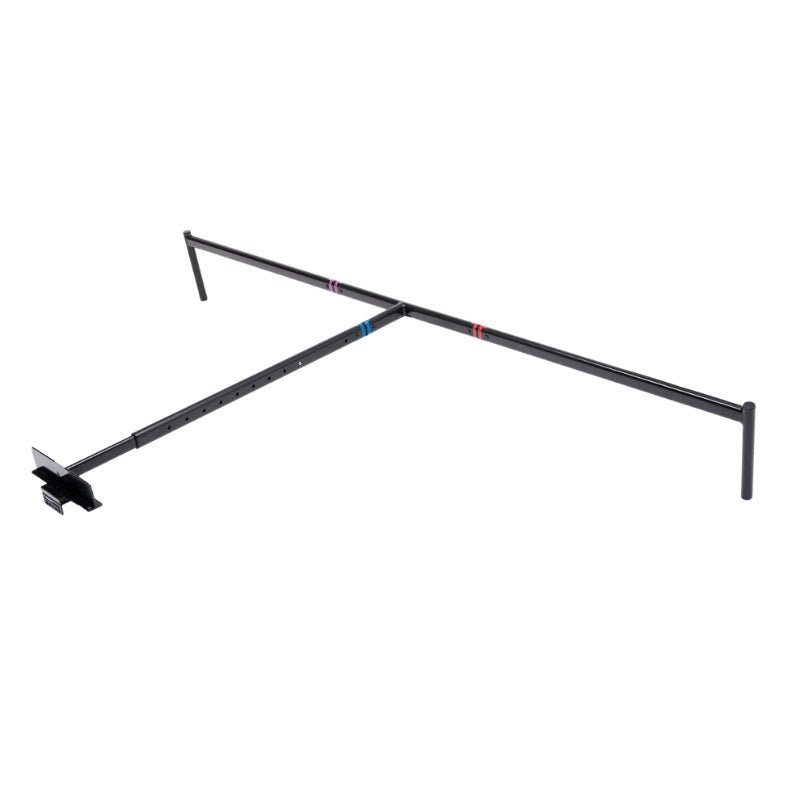

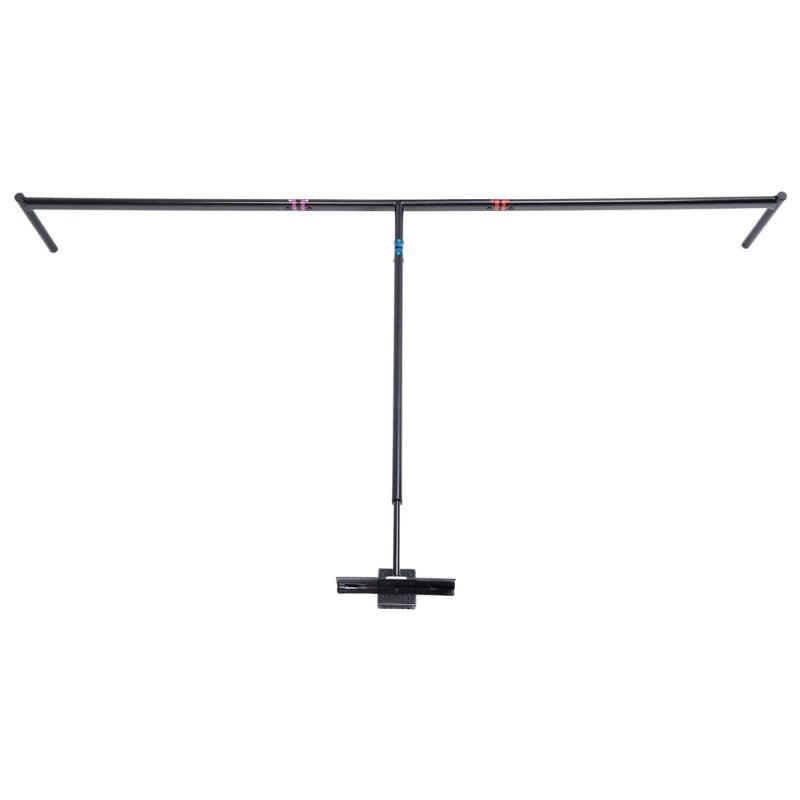

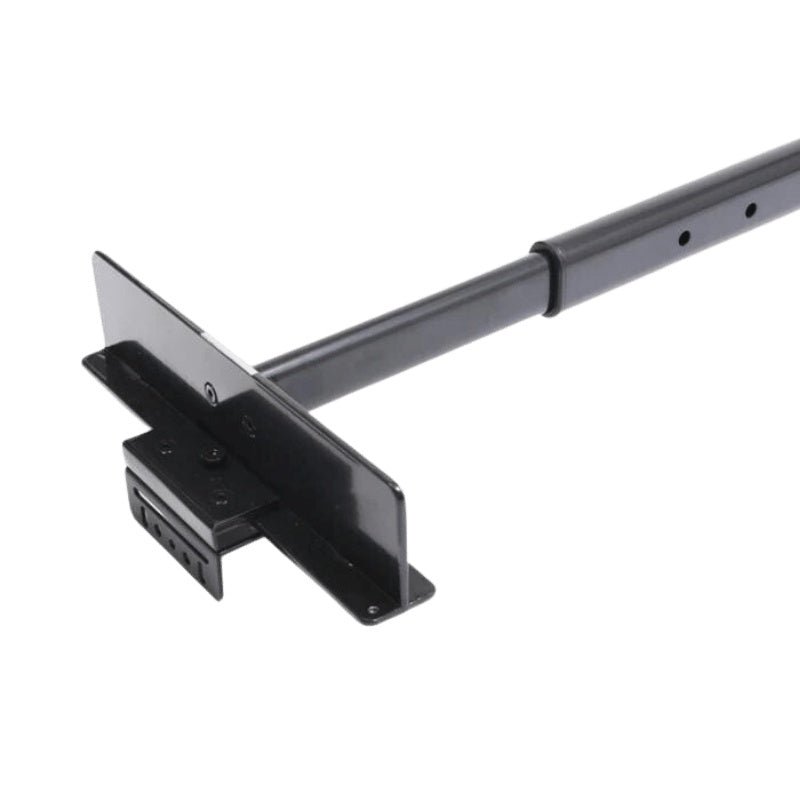

The Net Return Projector Mount Kit

• Frame Height: 8'10" (Rear Display Bar) *With Projector Mount Kit Installed Height Increases to 9 feet.
• Frame Height 8'2" (Front Horizontal Tubing)
• Frame Width: 8'
• Frame Depth: 3'6"
• Unit Weight: 58 lbs. (With Projector Mount Kit 64 lbs.) With The Projector Mount Kit Accessory Added - Max. Extension of arm 5'9" from screen / with arm compressed 4'2" from screen
• Max Projector Weight on Projector Mount Kit: 12 lbs.
• The actual Simulator Series Screen is 100" Tall x 87" Wide (8'3"x7'2"). Bottom Left Corner to Upper Right Corner is - 131.5" (10'9").

*Projector, Simulator Software or Computer not included. You will need to obtain these items on your own.

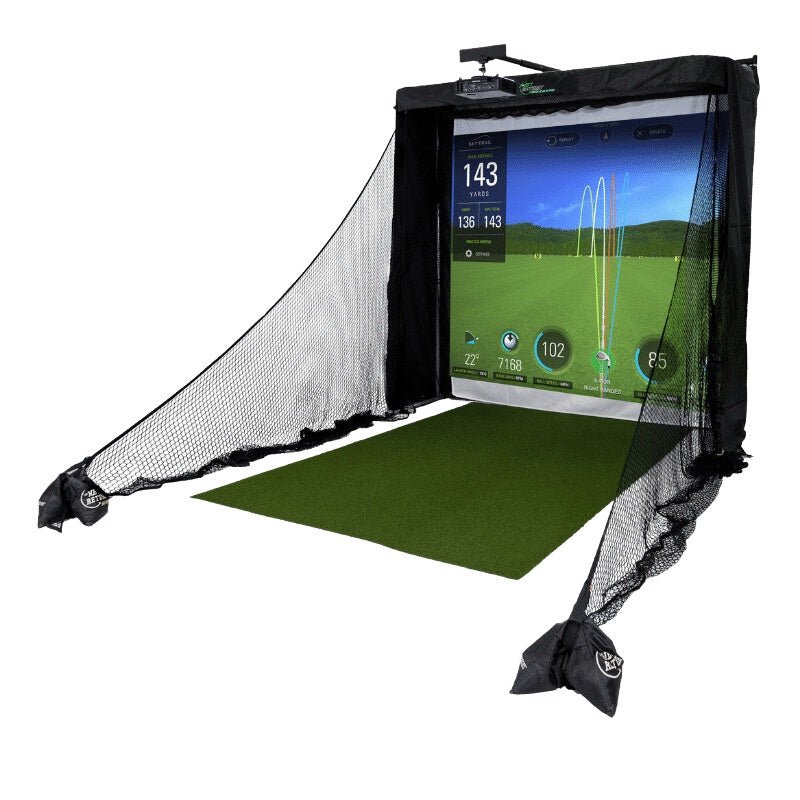

Simulator Series Notes
In the Simulator Series video we used a ViewSonic Ultra Short Throw Projector. ViewSonic Model #pjd6683ws at a 4:3 Aspect Ratio. You will want to use a 4:3 Aspect Ratio rather than a 16:9 Aspect Ratio due to the squareness of our screen. To test the exact size of the picture that will show up on the Simulator Series screen with your projector model, consult the manufacturer projector distance calculator.

This allows you to plug in the projector model you are using, distance from screen, aspect ratio, etc. and provides you with an exact picture size ahead of time. Here is a link to a generic projector distance calculator, from Projector Central for you to use as an example.
